Size: | |
---|---|
Availability: | |
Quantity: | |

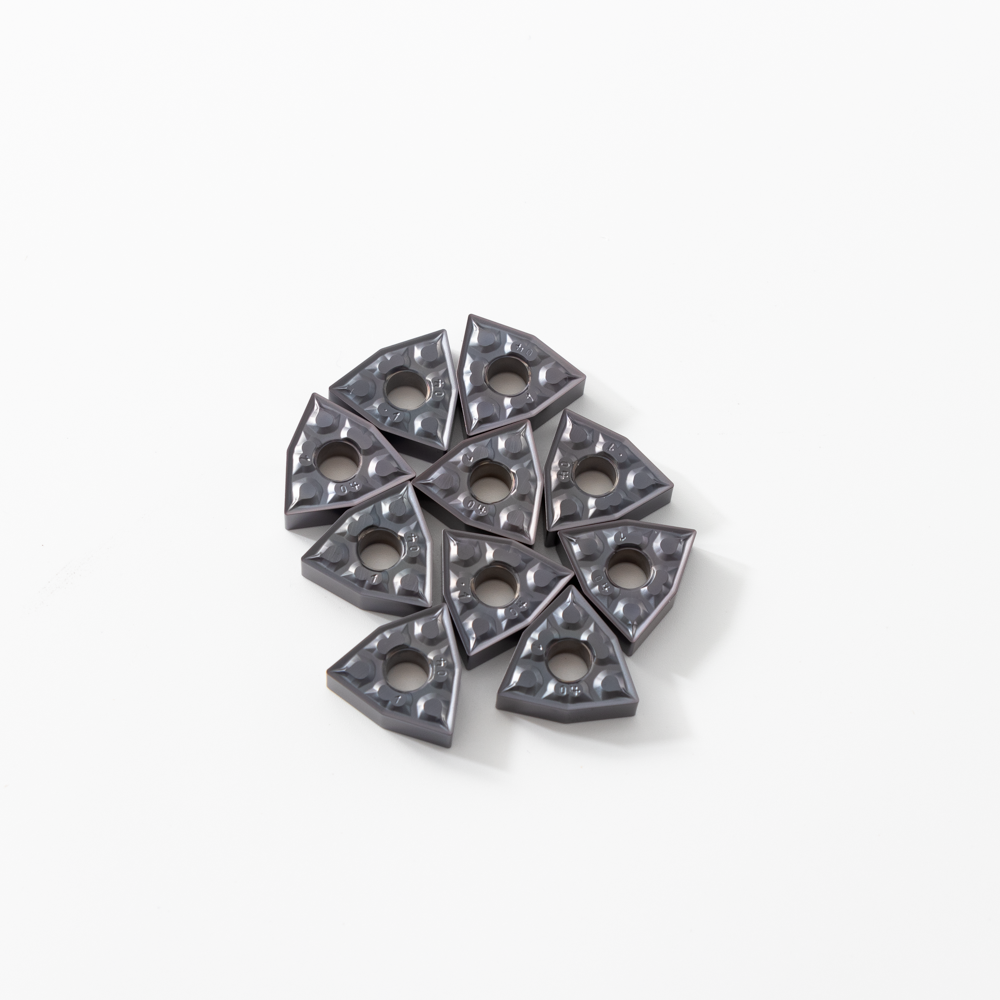

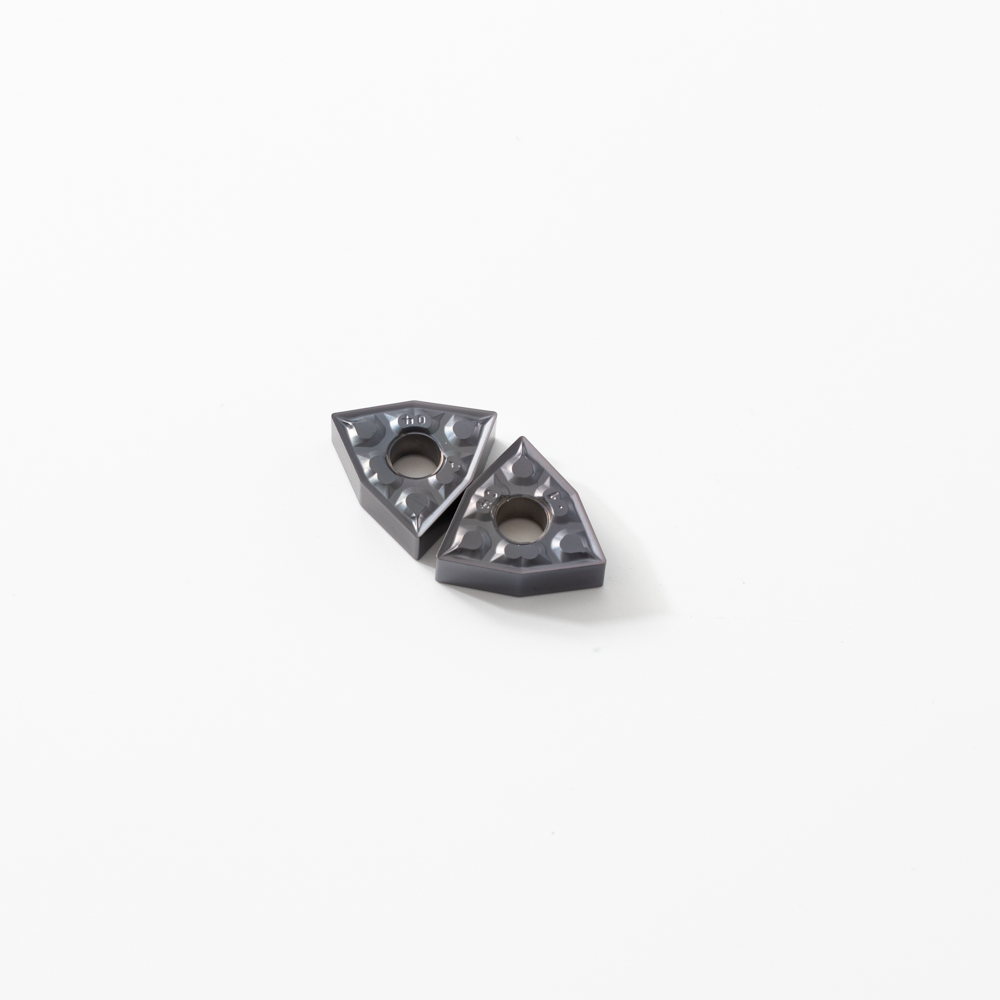

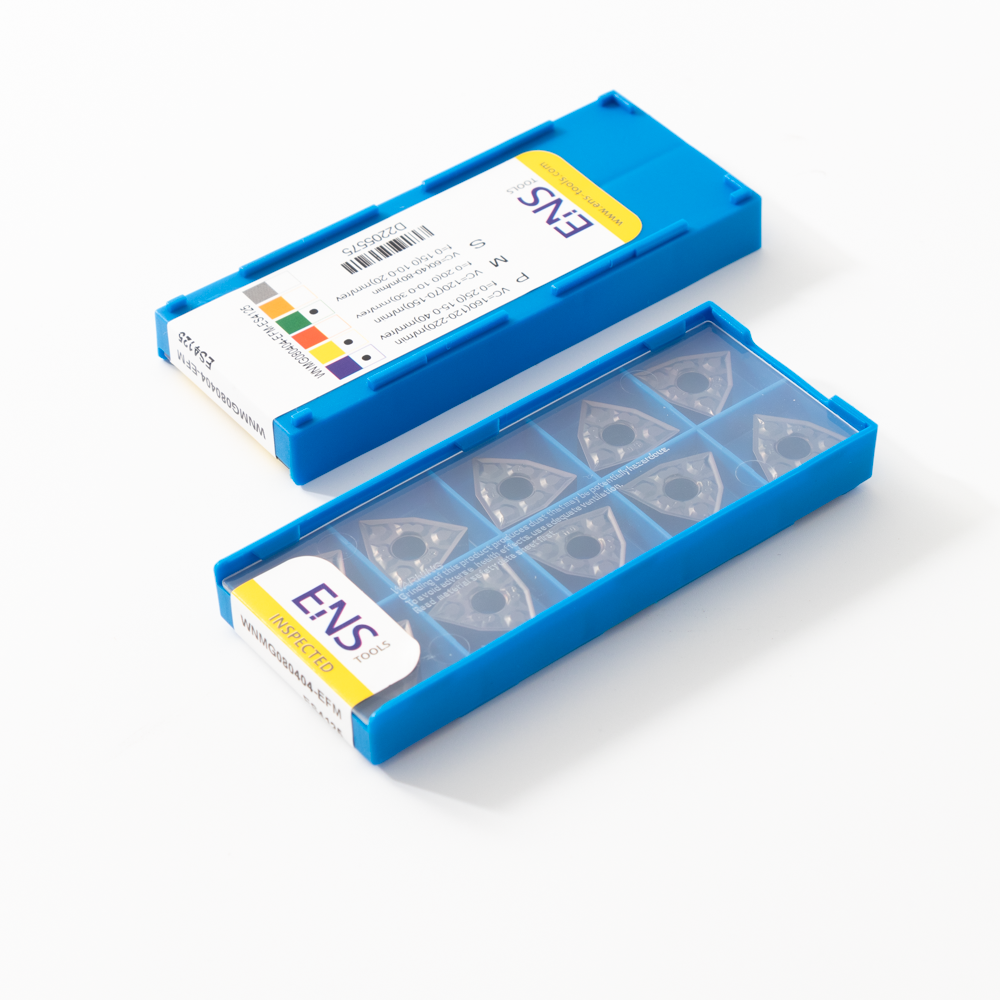

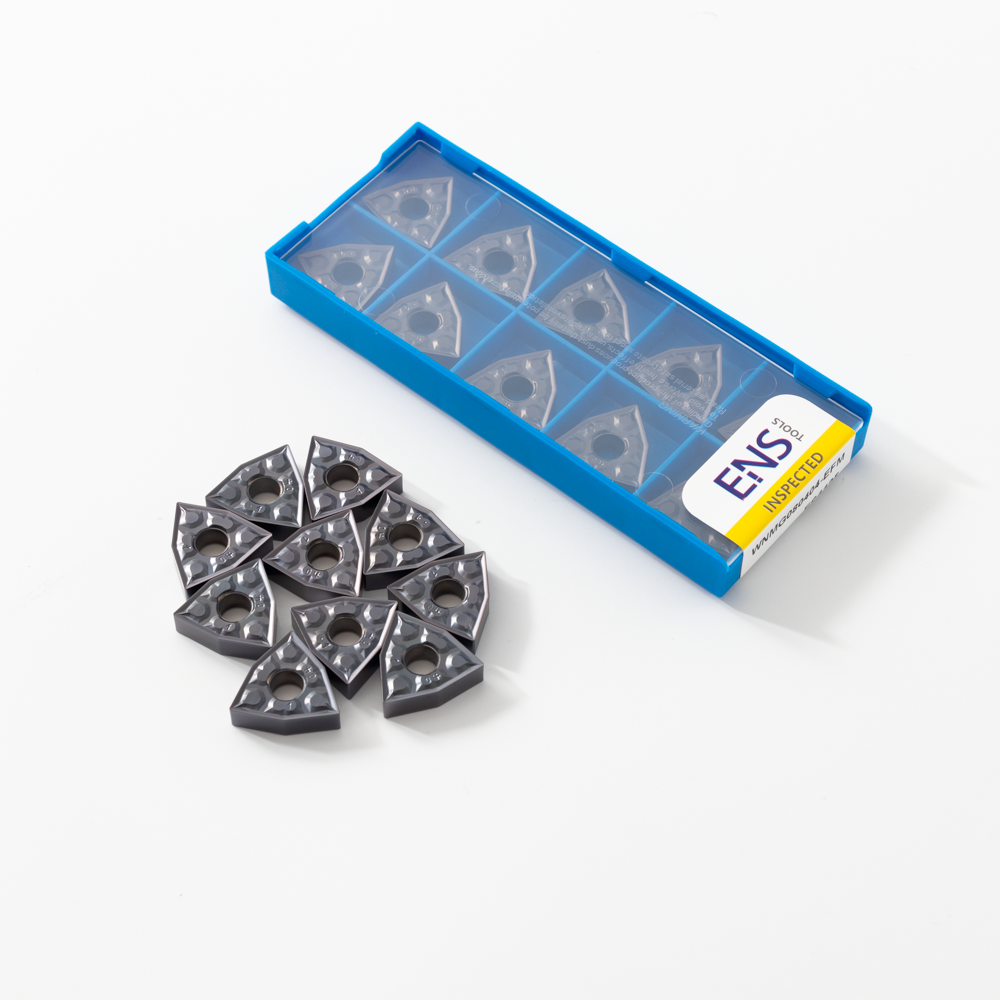

WNMG080404-NM
Ens
Carbide Turning Inserts For steel is the preferred raw material. It adopts the common cemented carbide raw material for stainless steel castings. It has high toughness, high wear resistance and high temperature resistance, and is suitable for different working conditions. It is sprayed by the stress accumulation method below 1000 ℃, and the coating is thicker and more wear-resistant.
Turning Inserts ( Negative ) | O continuous C P Steel © Q | Stainless Steel ' Cast Iron_ Ncn-ferrous Metal S Heat-resistant Alloy,TiAlloy High Hardness Materials | light Interruption OOG . . | i | 楸 Interruption | |||||||||||||||||
Shape | OrderingCode | Dimmnsions(mm) | Coated-CVD | Coated-P | VD Uncoaled | Cermet | CBN | PCD | |||||||||||||
L | D | s | d1 | R | I | s L z | q N | L 3 | NM3125 NS4115 | £ H | z | £ N | NCBN115 | | NCBN125 | | s L § z | NPCD125 | | |||||
A Finishing | WNMG080404-NF | 8.70 | 12.70 | 4.76 | 5.16 | 040 | • | ||||||||||||||
WNMG080408-NF | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | |||||||||||||||
A | WNMG080404-NFM | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | • | ||||||||||||||
WNMG080408-NFM | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | |||||||||||||||
WNMG080412-NFM | 8.70 | 12.70 | 4.76 | 5.16 | 1^0 | . | |||||||||||||||
SemMinishlng | |||||||||||||||||||||
Medium | WNMG080404-NM | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | . | ||||||||||||||
WNMG080408-NM | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | |||||||||||||||
• Medium | WNMG080404-NGM | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | . | ||||||||||||||
WNMG080408-NGM | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | |||||||||||||||
— | WNMG080408-NR | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | ||||||||||||||
WNMG080412-NR\ | 8.70 | 12.70 | 4.76 | 5.16 | 1.20 | . | |||||||||||||||
Roughing | — | ||||||||||||||||||||
A SemMinishlng | WNMG080404-NL | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | • | ||||||||||||||
WNMG080412-NL | 8.70 | 12.70 | 4.76 | 5.16 | 0.12 | • | |||||||||||||||
A Roughing | WNMA080404 | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | . | :.J | |||||||||||||
WNMA080408 | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | . | ||||||||||||||
WNMA080412 | 8.70 | 12.70 | 4.76 | 5.16 | 1.20 | . | |||||||||||||||
A Medium | WNMG080404-NK1 | 8.70 | 12.70 | 4.76 | 5.16 | 0.40 | . | • | |||||||||||||
WNMG080408-NK1 | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | . | . | ||||||||||||||
WNMG080412-NK1 | 8.70 | 12.70 | 4.76 | 5.16 | 1.20 | • | . | ||||||||||||||
A Roughing | WNMG080408-NK2 | 8.70 | 12.70 | 4.76 | 5.16 | 0.80 | • | • | |||||||||||||
WNMG080412-NK2 | 8.70 | 12.70 | 4.76 | 5.16 | 1.20 | • | . | ||||||||||||||
