| SCLCR/L: | |
|---|---|
| Quantity: | |
C10K-SCLCR/L06;H10K-SCLCR/L
Ens

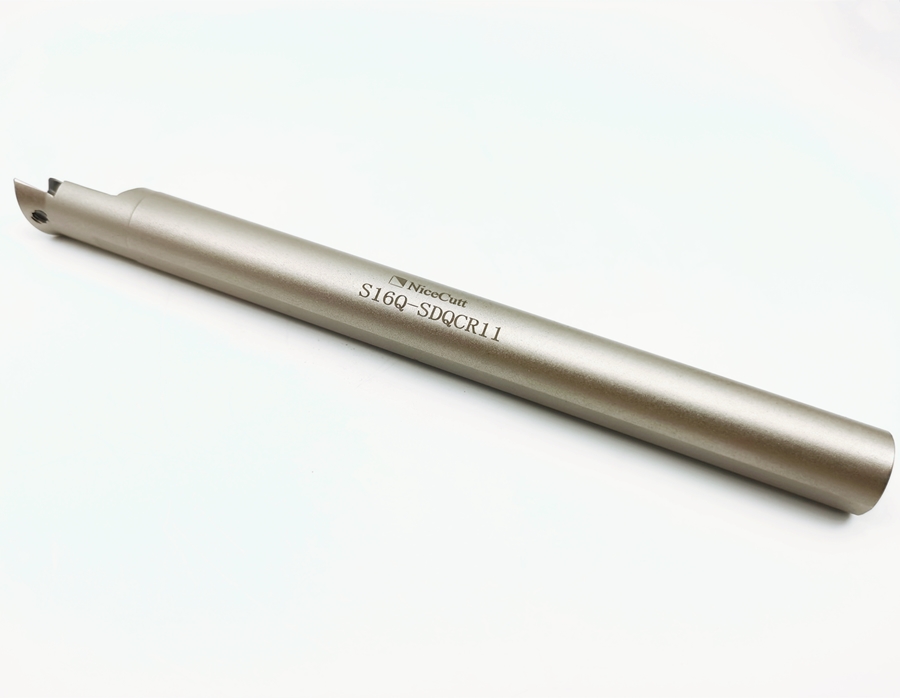

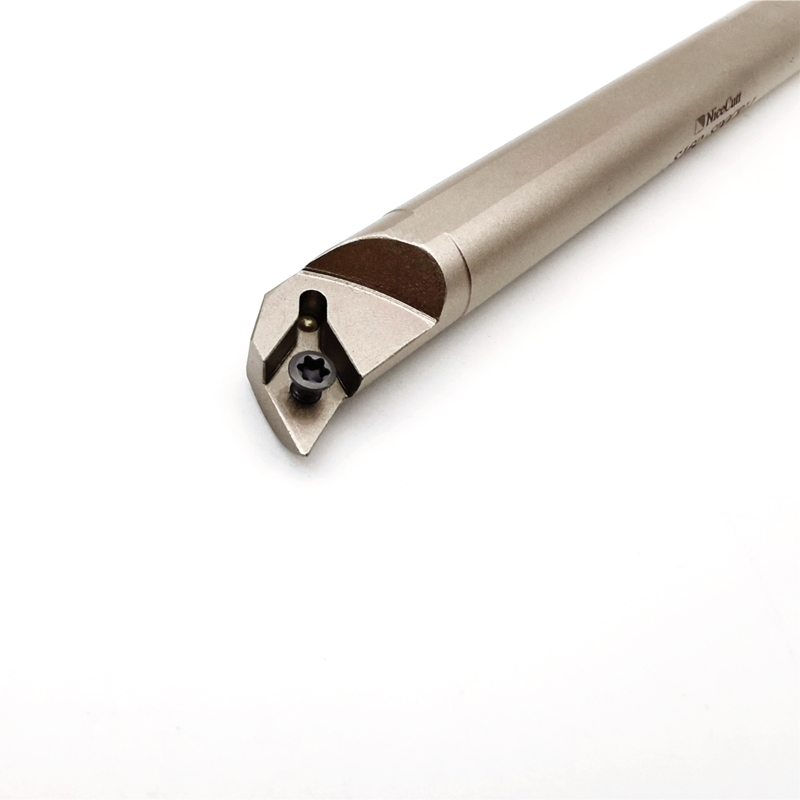

Internal Turning Tools are made of imported steel, and each step of the process is checked by special personnel. It can only be sold after strict inspection, and the quality is guaranteed. The matching blade will greatly improve your efficiency. Each blade holder has undergone strict inspection and is made of selected alloy steel, which greatly improves the work efficiency. The blade holder is hardened and durable.
Ordering Code | Stock | Dimensions(mm) | Insert | Screw | Wrench | |||||||
R | L | D | d | L | L1 | H | f | a° | 0 | T | k | |
C08K-SDQCR/L07 | • | o | 13 | 8 | 6 | 7 | 125 | 20 | 12 | DC°0702 | M2.5,6 | T-8 |
C10K-SDQCR/L07 | . | O | 16 | 10 | 7 | 9 | 125 | 23 | 10 | |||
C12M-SDQCR/L07 | . | o | 20 | 12 | 9 | 11 | 150 | 30 | 8 | |||
C12Q-SDQCR/L07 | • | o | 20 | 12 | 9 | 11 | 150 | 30 | 8 | |||
C16Q-SDQCR/L07 | • | o | 25 | 16 | 10.5 | 15 | 180 | 30 | 6 | |||
C16Q-SDQCR/L11 | . | o | 25 | 16 | 11 | 15 | 180 | 30 | 6 | DC-11T3 | M3.5'8 | T-15 |
C16R-SDQCR/L11 | • | o | 25 | 16 | 11 | 15 | 200 | 30 | 6 | |||
C20S-SDQCR/L11 | . | o | 28 | 20 | 12.5 | 18 | 250 | 39 | 6 | |||
★ Matched Inserts in P27
•Stock OAvailabie upon Order
Ordering Code | Steck | Dimensions(mm) | Insert | Screw | Wrench | |||||||
R | L | D | d | L | L1 | H | f | a0 | s | T | ||
C04G-SCLCR/L03 | • | O | 5 | 4 | 2.5 | 3.8 | 90 | 15 | 15° | CCGT0301 | M1.8'35 | T-6 |
C05H-SCLCR/L03 | . | O | 6 | 5 | 3 | 4.4 | 100 | 15 | 13° | |||
C06H-SCLCR/L04 | . | o | 7 | 6 | 3.5 | 5.4 | 100 | 15 | 13° | CCGT0401 | M2.0-4 | T-6 |
C07K-SCLCR/L04 | • | o | 8 | 7 | 4 | 6.4 | 125 | 20 | 15° | |||
C08K-SCLCR/L06 | . | o | 10 | 8 | 5 | 7 | 125 | 20 | 13 | CC”0602 | M2.5,6 | T-8 |
C10K-SCLCR/L06 | . | o | 13 | 10 | 6.5 | 9 | 125 | 22 | 12 | |||
C12M-SCLCR/L06 | . | o | 16 | 12 | 8 | 11 | 150 | 25 | 10 | |||
C12Q-SCLCR/L06 | • | o | 16 | 12 | 8 | 11 | 180 | 25 | 12 | |||
C16Q-SCLCR/L09 | . | o | 20 | 16 | 10 | 15 | 180 | 28 | 10 | CC”09T3 | M3.5-8 | T-15 |
C20S-SCLCR/L09 | • | o | 25 | 20 | 12.5 | 18 | 250 | 33 | 8 | |||
Ordering Code | Stock | Dimensions | mm) | Insert | Screw | Wrench | ||||||
R | L | D | d | L | L1 | H | f | a。 | a | T | 厂 | |
C0604G-SCLCR/L03-A | . | O | 5 | 4 | 2.5 | 3.8 | 90 | 15 | 15° | CCGT0301 | M 13,3.5 | T-6 |
C0605H-SCLCR/L03-A | • | O | 6 | 5 | 3 | 4.4 | 100 | 15 | 13° | |||
C06H-SCLCR/L04-A | . | O | 7 | 6 | 3.5 | 5.4 | 100 | 15 | 13° | CCGT0401 | M2.0,4 | T-6 |
C07K-SCLCR/L04-A | . | O | 8 | 7 | 4 | 6.4 | 125 | 20 | 15° | |||
C08K-SCLCR4.06-A | • | o | 10 | 8 | 5 | 7 | 125 | 20 | 13 | CC-0602 | M2.5*6 | T-8 |
C10K-SCLCFVL06-A | • | o | 13 | 10 | 6.5 | 9 | 125 | 22 | 12 | |||
C12M-SCLCR/L06-A | • | o | 16 | 12 | 8 | 11 | 150 | 25 | 10 | |||
C12Q-SCLCR/L06-A | • | o | 16 | 12 | 8 | 11 | 180 | 25 | 12 | |||
C16Q-SCLCR/L09-A | • | o | 20 | 16 | 10 | 15 | 180 | 28 | 10 | CC-09T3 | M3.5*8 | T-15 |
C20S-SCLCR/L09-A | • | o | 25 | 20 | 12.5 | 18 | 250 | 33 | 8 | |||
Ordering Code | Stock | Dimensions(mm) | Insert | Screw | Wrench | |||||||
R | L | D | d | L | L1 | H | f | a。 | B | T | 尸 | |
H04H-SCLCR/L03 | • | O | 5 | 4 | 2.5 | 3.8 | 100 | 15 | 15° | CCGT0301 | M1E35 | T-6 |
H05H-SCLCR/L03 | • | o | 6 | 5 | 3 | 4.4 | 100 | 15 | 13° | |||
H1004H-SCLCR/L03 | . | o | 5 | 10 | 2.5 | 3.8 | 100 | 15 | 15° | CCGT0301 | M1835 | T-6 |
H1005H-SCLCR/L03 | • | o | 6 | 10 | 3 | 4.4 | 100 | 15 | 13° | |||
H06H-SCLCR/L04 | • | o | 7 | 6 | 3.5 | 5.4 | 100 | 15 | 13° | CCGT0401 | M2O4 | T-6 |
H07K-SCLCR/L04 | . | o | 8 | 7 | 4 | 6.4 | 125 | 20 | 15° | |||
H08K-SCLCR/L06 | . | o | 10 | 8 | 5 | 7 | 125 | 20 | 13 | CC-0602 | M2.5,6 | T-8 |
H10K-SCLCR/L06 | • | o | 13 | 10 | 6.5 | 9 | 125 | 22 | 12 | |||
H12K-SCLCR/L06 | . | o | 16 | 12 | 8 | 11 | 125 | 25 | 10 | |||
H12M-SCLCR/L09 | o | 0 | 16 | 12 | 8 | 11 | 150 | 25 | 12 | CC-09T3 | M3.5-8 | T-15 |
