DCMT11T308
Ens

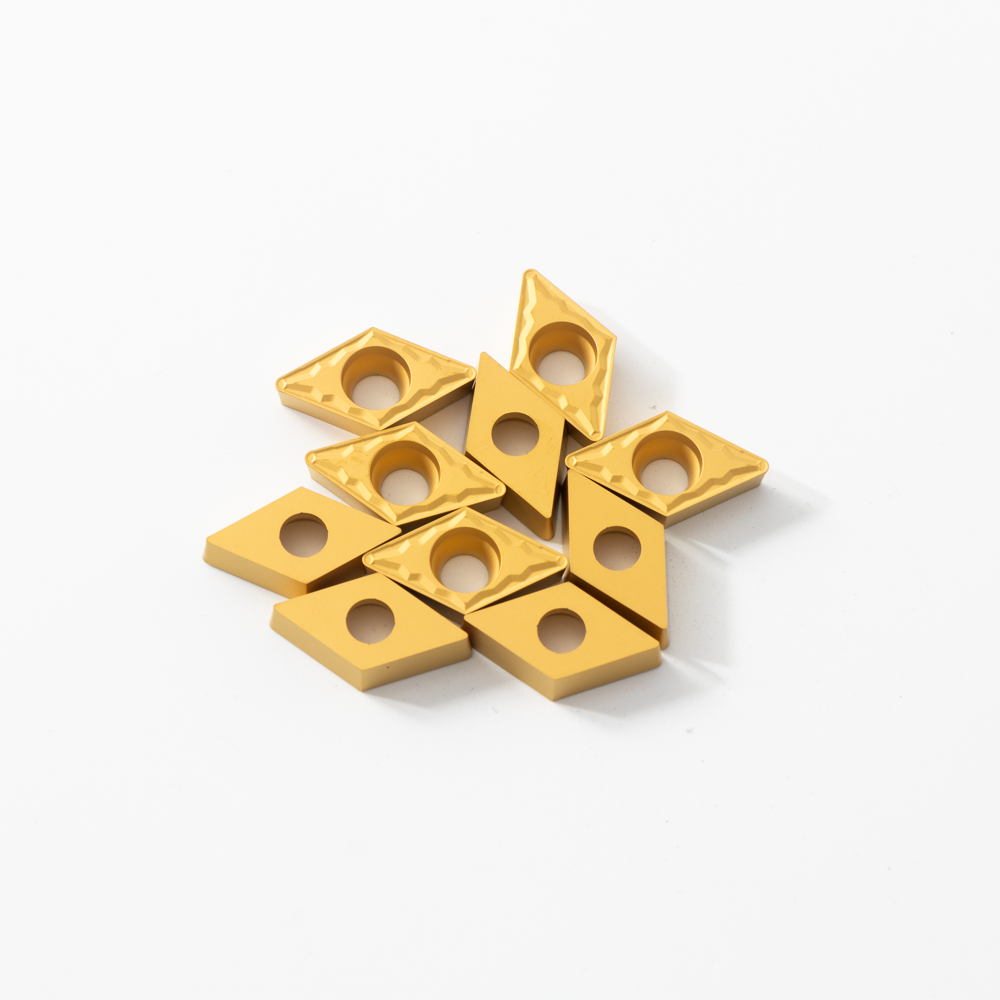

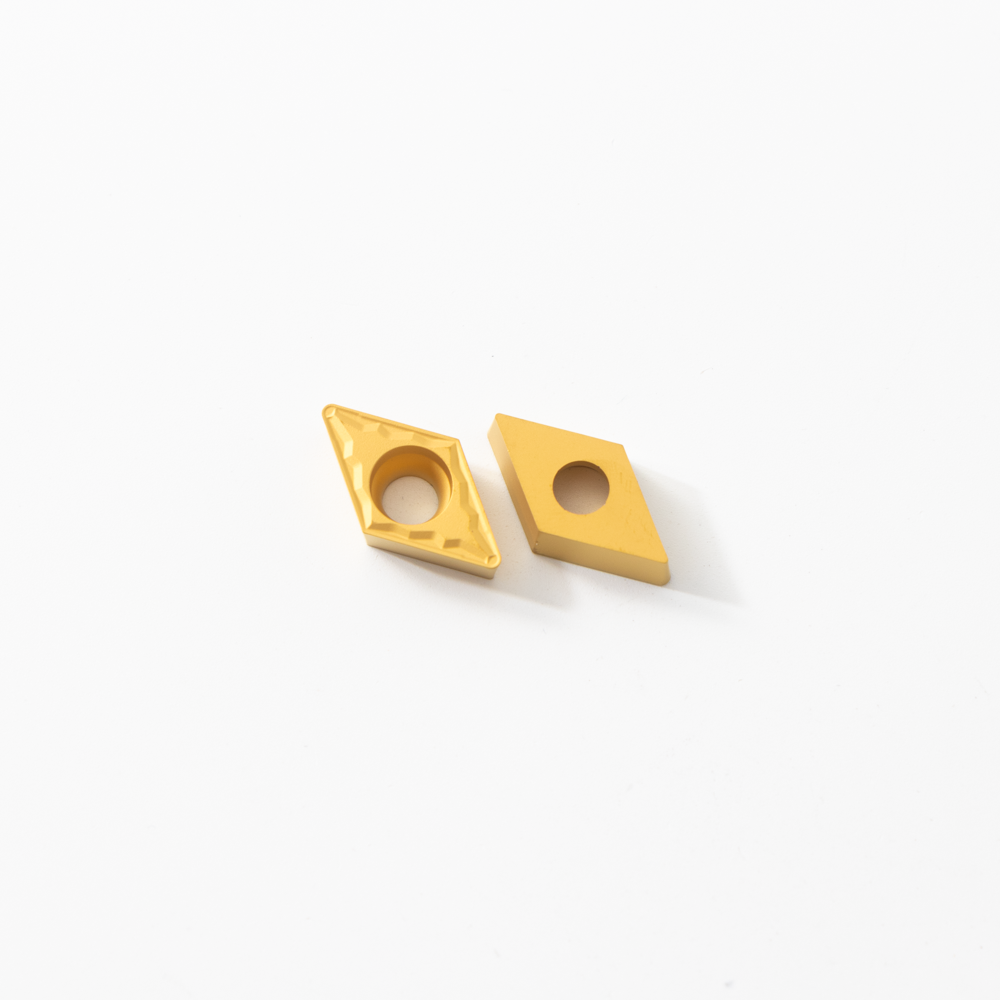

The blade of Carbide Turning Inserts adopts new coating + new substrate, the coating is thicker, and has the characteristics of high hardness and high wear resistance. The fine-grained cemented carbide substrate has excellent wear resistance and oxidation resistance. It is used in hard materials, stainless steel processing, steel prices, cast iron materials, high-speed processing, etc. The large chip flute can also reduce the cutting resistance and reduce the high frequency chatter and chip jamming under the condition of large cutting depth.
P | Steel | O | © | ||||||||||||||||||||||
M | Stainless Steel | O G | O | ||||||||||||||||||||||
1 | s | Cast Iron | — | < | — | .. | |||||||||||||||||||
一 j | s H | Heat-resistant AlloyJiAlloy | O | G | |||||||||||||||||||||
High Hardness Materials | i€> | G | |||||||||||||||||||||||
Shape | OrderingCode | Dimensions(mm) | Coated-CVD | Coated-PVD | Uncoated | Cermet | CBN | PCD | |||||||||||||||||
L | D | S | d1 | R | tn L £ N | L a. z | w z | a L 5 N | L 匸 N | § N | s N | NS4125 | | s z | £ N | a. z | NP125T | co * | a 參 | NPCD115 | | 5 2 z | |||||
DCMT11T302L-F | 11.60 | 9.25 | 3.97 | 4.40 | 0.20 | . | . | ||||||||||||||||||
DCMT11T304L-F | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | • | . | ||||||||||||||||||
DCMT11T302R-F | 11.60 | 9.25 | 3.97 | 4.40 | 0.20 | . | . | ||||||||||||||||||
DCMT11T304R-F | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | . | . | ||||||||||||||||||
DCMT070204 | F | 7.80 | 6.35 | 2.38 | 2.80 | 0.40 | . | ||||||||||||||||||
DCMT070208 | F | 7.80 | 6.35 | 2.38 | 2.80 | 0.80 | . | ||||||||||||||||||
Finishing | DCMT11T304 | F | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | . | |||||||||||||||||
DCMT11T308 | F | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | . | ||||||||||||||||||
* | DCMT070202 | M | 7.80 | 6.35 | 2.38 | 2.80 | 0.20 | 0 | 0 | ||||||||||||||||
DCMT070204 | M | 7.80 | 6.35 | 2.38 | 2.80 | 0.40 | . | 0 | |||||||||||||||||
DCMT11T304 | M | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | • | 0 | |||||||||||||||||
Medium | DCMT11T308 | M | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | . | 0 | ||||||||||||||||
DCGW070202 | 2 | 7.80 | 6.35 | 2.38 | 2.80 | 0.20 | . | o | |||||||||||||||||
DCGW070204 | 2 | 11.60 | 9.25 | 3.97 | 4.40 | 0.20 | . | 0 | |||||||||||||||||
DCGW11T304 | Z2 | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | . | 0 | |||||||||||||||||
CBN | DCGW11T308 | Z2 | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | • | 0 | ||||||||||||||||
DCGT070202 | Z1 | 7.80 | 6.35 | 2.38 | 2.80 | 0.20 | . | 0 | |||||||||||||||||
DCGT070204 | Z1 | 7.80 | 6.35 | 2.38 | 2.80 | 0.40 | • | 0 | |||||||||||||||||
PCD | DCGT11T302 | Z1 | 11.60 | 9.25 | 3.97 | 4.40 | 0.20 | • | |||||||||||||||||
DCGT11T304 | Z1 | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | . | 0 | |||||||||||||||||
DCMW11T304 | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | 0 | |||||||||||||||||||
DCMW11T308 | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | 0 | |||||||||||||||||||
Roughing | |||||||||||||||||||||||||
DCGT070204-NL | 7.80 | 6.35 | 2.38 | 2.80 | 0.40 | . | |||||||||||||||||||
DCGT11T302-NL | 11.60 | 9.25 | 3.97 | 4.40 | 0.20 | . | |||||||||||||||||||
For・ | DCGT11T304-NL | 11.60 | 9.25 | 3.97 | 4.40 | 0.40 | . | ||||||||||||||||||
DCGT11T308-NL | 11.60 | 9.25 | 3.97 | 4.40 | 0.80 | . |
