| STFCR/L: | |
|---|---|
| Quantity: | |
S12M-STFCR/L09
Ens

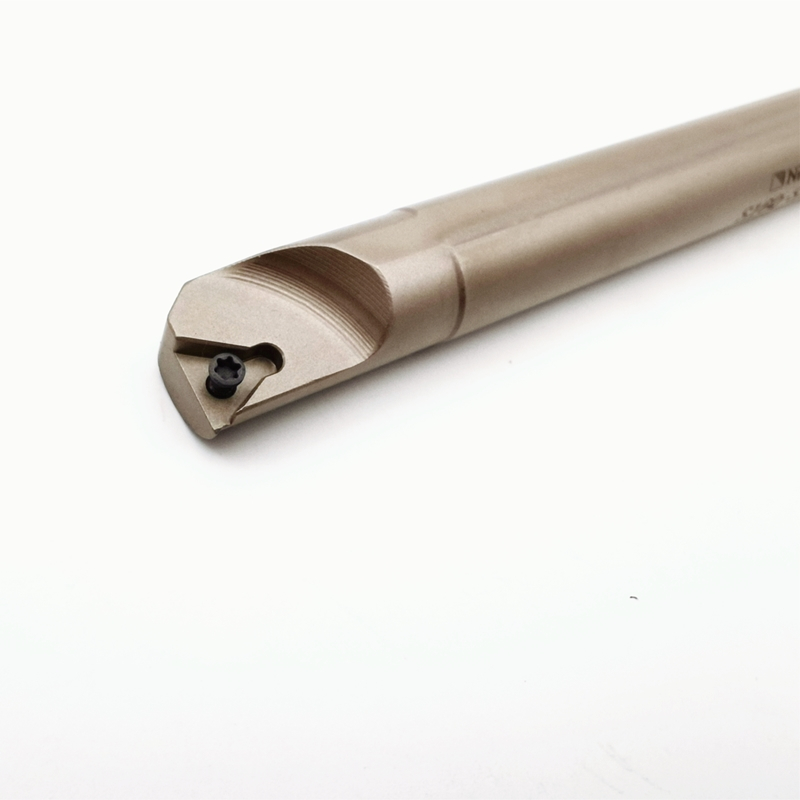

Internal Turning Tools adopts the free forging process and uses the impact force to make the metal freely deform in all directions between the upper and lower anvil surfaces, eliminating the defects such as shrinkage, shrinkage, pores, etc., so that the tool burrs have higher mechanical properties.
1060 ℃ high temperature quenching, high temperature heat treatment process, using water, oil and other materials for low temperature rapid cooling, high temperature tempering, greatly improving the strength, hardness, wear resistance, fatigue strength and toughness of the tool, making its surface bright.
Ordering Code | Stock | Dimensions(mm) | Insert | Screw | Wrench | |||||||
R | L | D | d | f | L | L1 | H | a° | A | T | k | |
S10K-ST=CR/L09 | • | • | 13 | 10 | 5 | 125 | 24 | 9 | 13 | TCw0902 | M2.2*6 | T-6 |
S12M-STFCR/L09 | . | . | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||
S10K-ST=CR/L11 | • | . | 13 | 10 | 5 | 125 | 24 | 9 | 13 | TC"1102 | M2.5,6 | T-8 |
S12M-STFCR/L11 | • | . | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||

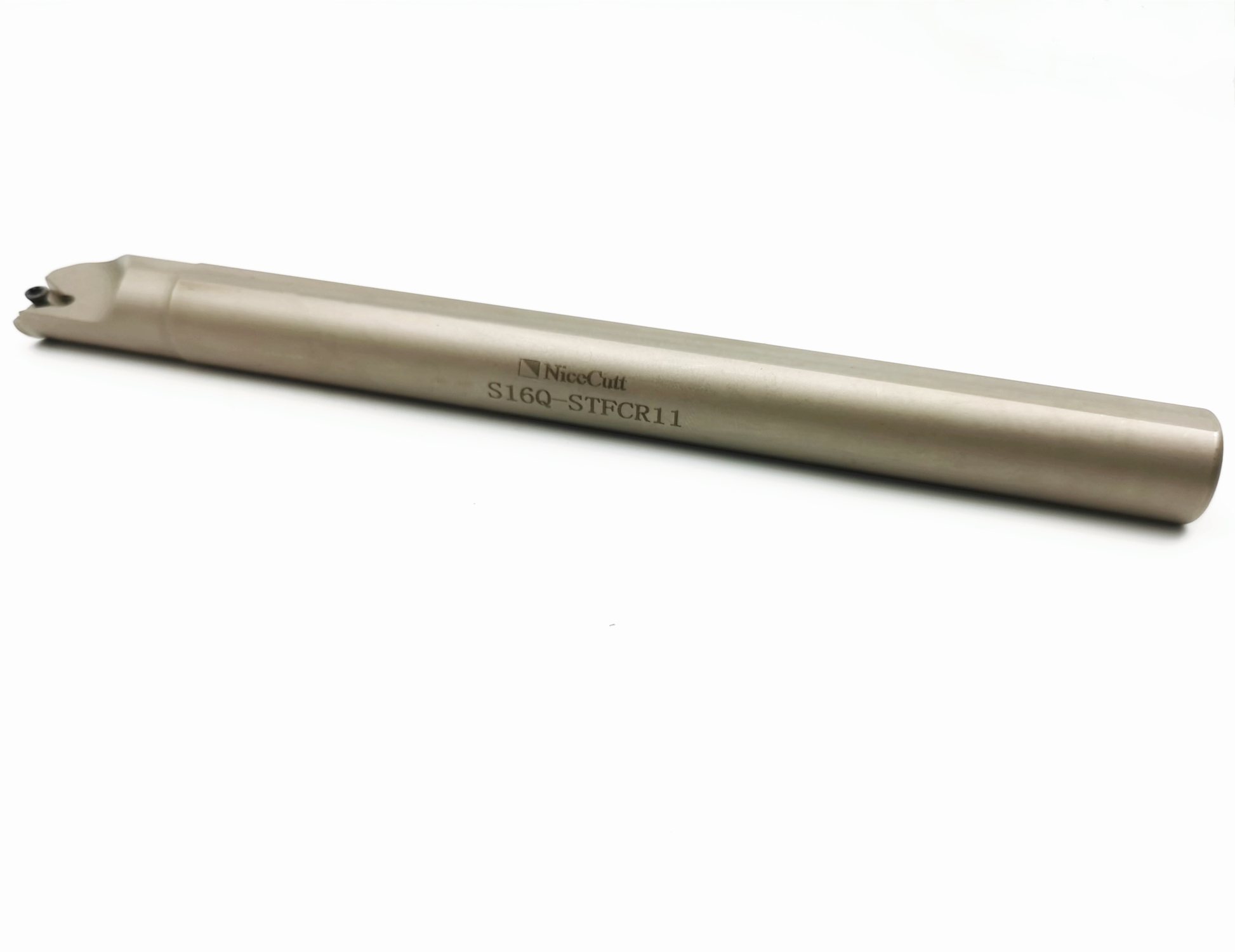

S16Q-STFCR/L11 | . | . | 20 | 16 | 9 | 180 | 30 | 15 | 8 | |||
S20R-STFCR/L11 | • | . | 25 | 20 | 11 | 200 | 35 | 18 | 6 | |||
S20R-STFCR/L16 | . | . | 25 | 20 | 11.5 | 200 | 40 | 18 | 8 | TC”16T3 | M3.5*8 | T-15 |
S25S-ST=CR/L16 | . | . | 31 | 25 | 14 | 250 | 40 | 23 | 4 | |||
S32T-STFCR/L16 | . | . | 39 | 32 | 17.5 | 300 | 45 | 29 | 4 | |||
• Stock OAvailabie upon Order
★ Matched Inserts in P28
Internal Turning Tools adopts the free forging process and uses the impact force to make the metal freely deform in all directions between the upper and lower anvil surfaces, eliminating the defects such as shrinkage, shrinkage, pores, etc., so that the tool burrs have higher mechanical properties.
1060 ℃ high temperature quenching, high temperature heat treatment process, using water, oil and other materials for low temperature rapid cooling, high temperature tempering, greatly improving the strength, hardness, wear resistance, fatigue strength and toughness of the tool, making its surface bright.
Ordering Code | Stock | Dimensions(mm) | Insert | Screw | Wrench | |||||||
R | L | D | d | f | L | L1 | H | a° | A | T | k | |
S10K-ST=CR/L09 | • | • | 13 | 10 | 5 | 125 | 24 | 9 | 13 | TCw0902 | M2.2*6 | T-6 |
S12M-STFCR/L09 | . | . | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||
S10K-ST=CR/L11 | • | . | 13 | 10 | 5 | 125 | 24 | 9 | 13 | TC"1102 | M2.5,6 | T-8 |
S12M-STFCR/L11 | • | . | 16 | 12 | 7 | 150 | 27 | 11 | 10 | |||
S16Q-STFCR/L11 | . | . | 20 | 16 | 9 | 180 | 30 | 15 | 8 | |||
S20R-STFCR/L11 | • | . | 25 | 20 | 11 | 200 | 35 | 18 | 6 | |||
S20R-STFCR/L16 | . | . | 25 | 20 | 11.5 | 200 | 40 | 18 | 8 | TC”16T3 | M3.5*8 | T-15 |
S25S-ST=CR/L16 | . | . | 31 | 25 | 14 | 250 | 40 | 23 | 4 | |||
S32T-STFCR/L16 | . | . | 39 | 32 | 17.5 | 300 | 45 | 29 | 4 | |||
• Stock OAvailabie upon Order
★ Matched Inserts in P28
