S32T-PTUNR/L16
Ens

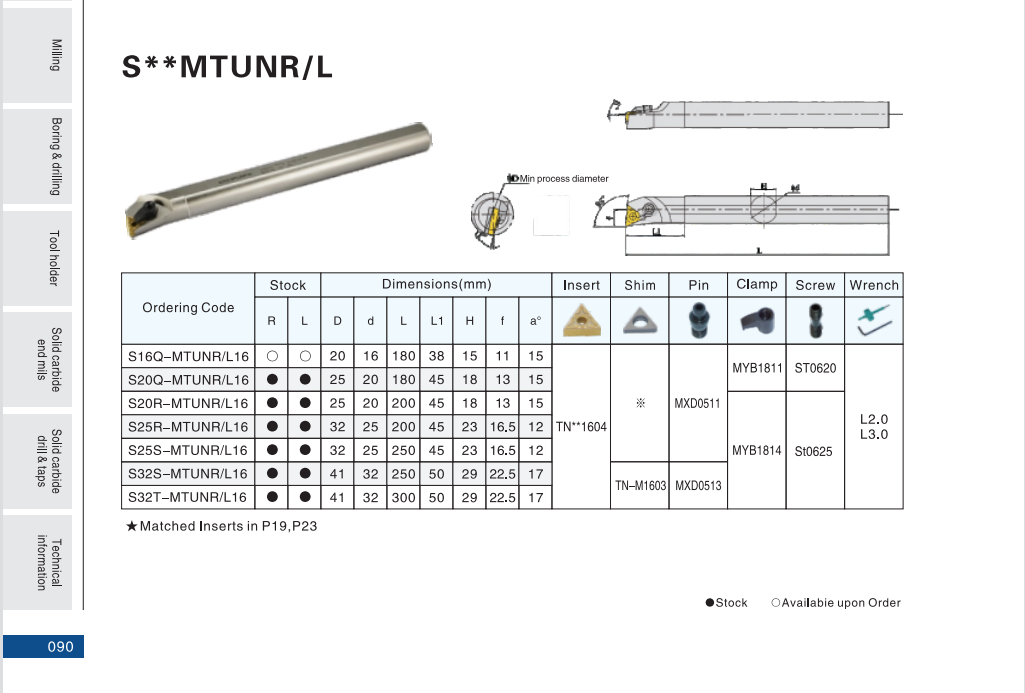

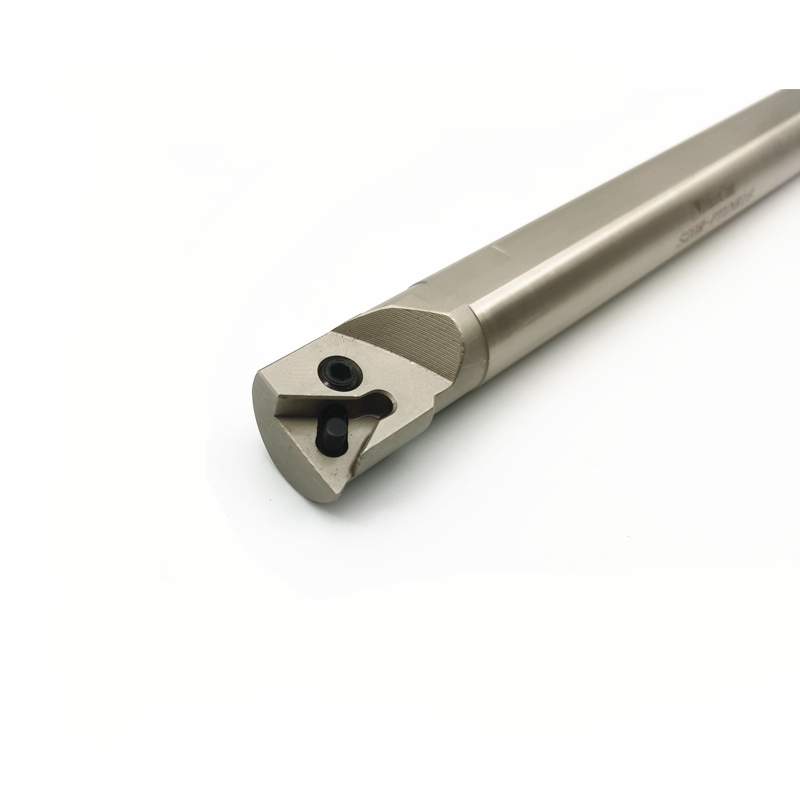

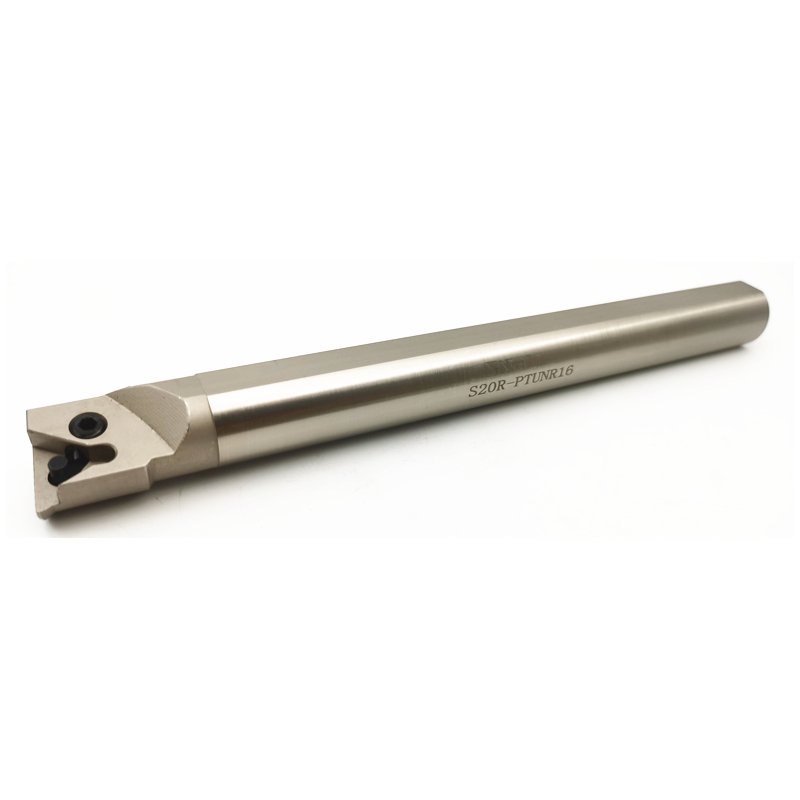

Our Internal Turning Tools accessories are imported with high strength, which increases stability during use, and the accessories will not break and deform. The surface is nickel-plated, so that the cutter body will never rust. The cutter body is vacuum quenched, and the precision and quality are beyond ordinary cutter bars. The optimized arc design effectively increases the stability of the cutter bar compared to ordinary cutter bars.
Ordering Code | Stock | Dimensions(mm) | Insert | Shim | Pin | Clamp | Screw | Wrench | |||||||
R | L | D | a | L | L1 | H | f | a° | ▲ | A | t | 1 | |||
S16Q-MTUNR/L16 | O | o | 20 | 16 | 180 | 38 | 15 | 11 | 15 | TN"1604 | MXD0511 | MYB1811 | ST0620 | L2.0 L3.0 | |
S20Q-MTUNR/L16 | . | . | 25 | 20 | 180 | 45 | 18 | 13 | 15 | ||||||
S20R-MTUNR/L16 | . | . | 25 | 20 | 200 | 45 | 18 | 13 | 15 | MYB1814 | St0625 | ||||
S25R-MTUNR/L16 | . | . | 32 | 25 | 200 | 45 | 23 | 16.5 | 12 | ||||||
S25S-MTUNR/L16 | . | . | 32 | 25 | 250 | 45 | 23 | 16.5 | 12 | ||||||
S32S-MTUNR/L16 | . | . | 41 | 32 | 250 | 50 | 29 | 22.5 | 17 | TN-M1603 | MXD0513 | ||||
S32T-MTUNR/L16 | . | • | 41 | 32 | 300 | 50 | 29 | 22.5 | 17 | ||||||
★ Matched Inserts in P19.P23
Too- ho-der
soacarbide
end3.-S
soacarbide
dr=-R-aps
Techn-ca-
-nforma—on
•Stock OAvailabie upon Order
