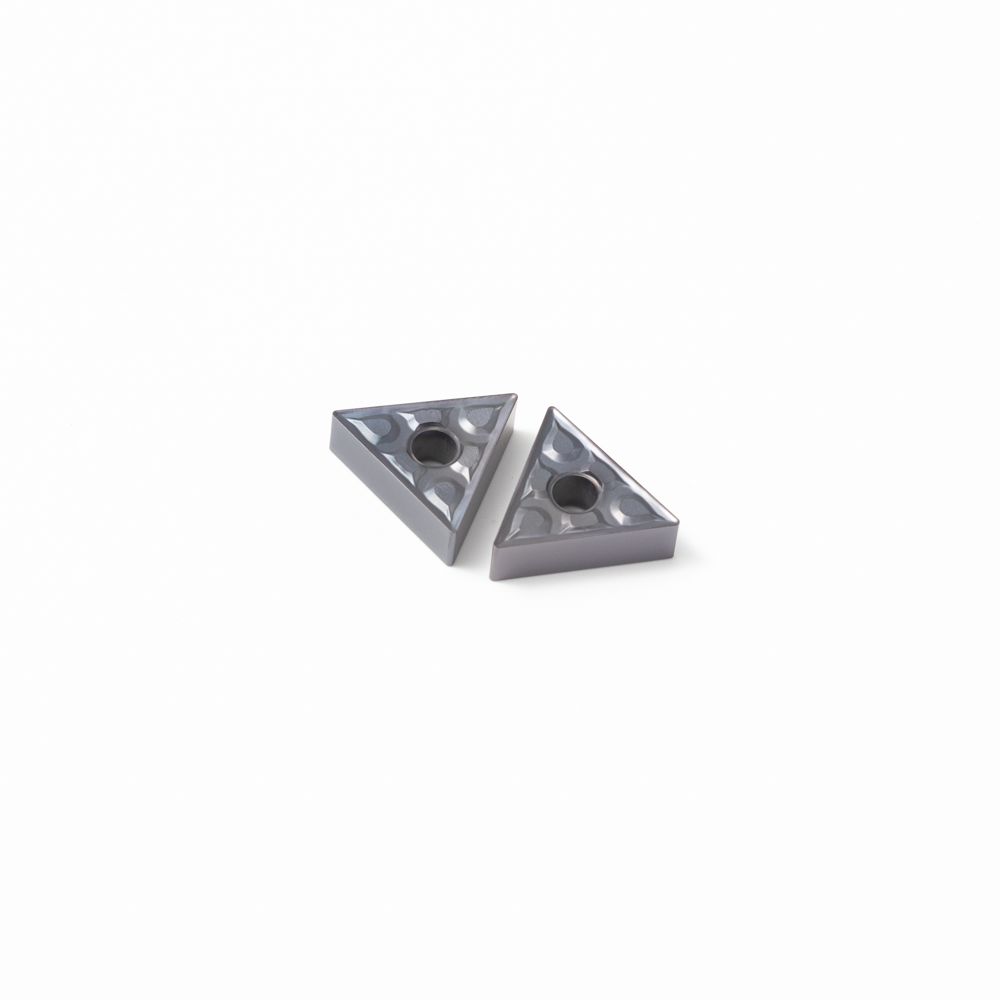

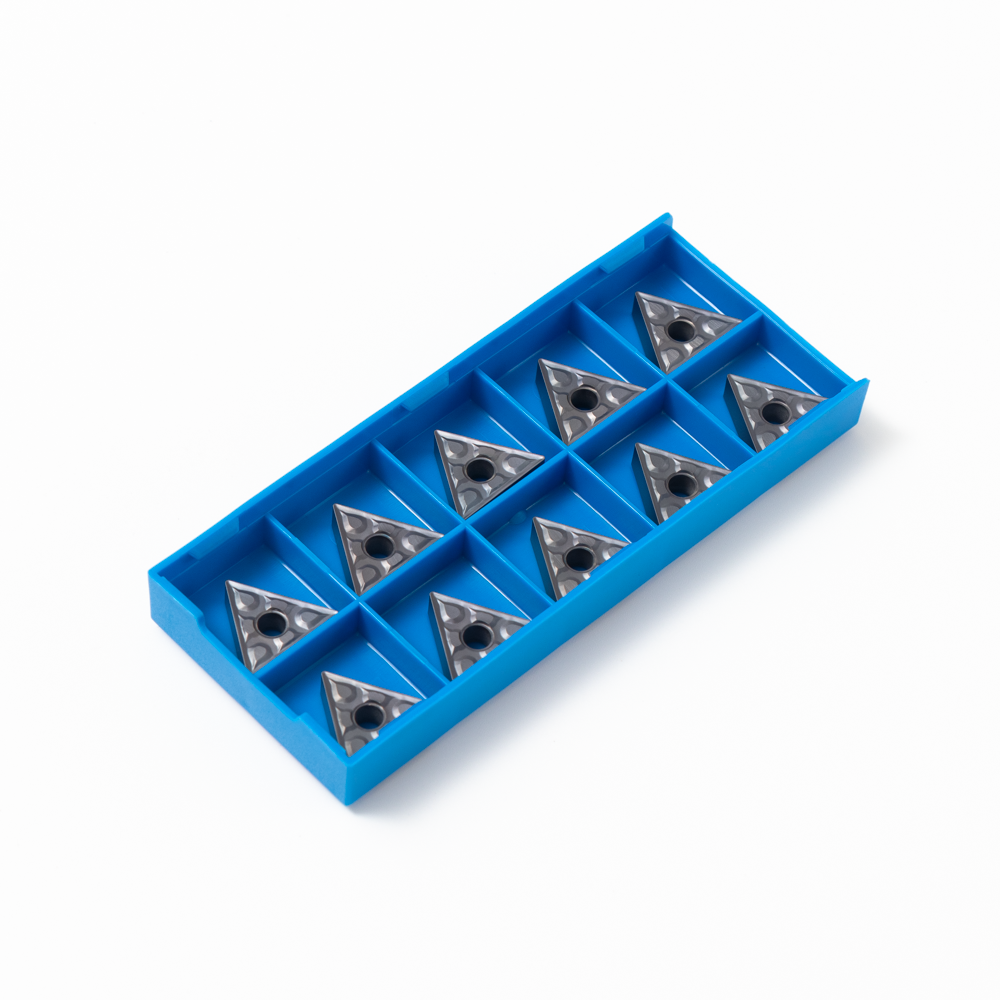

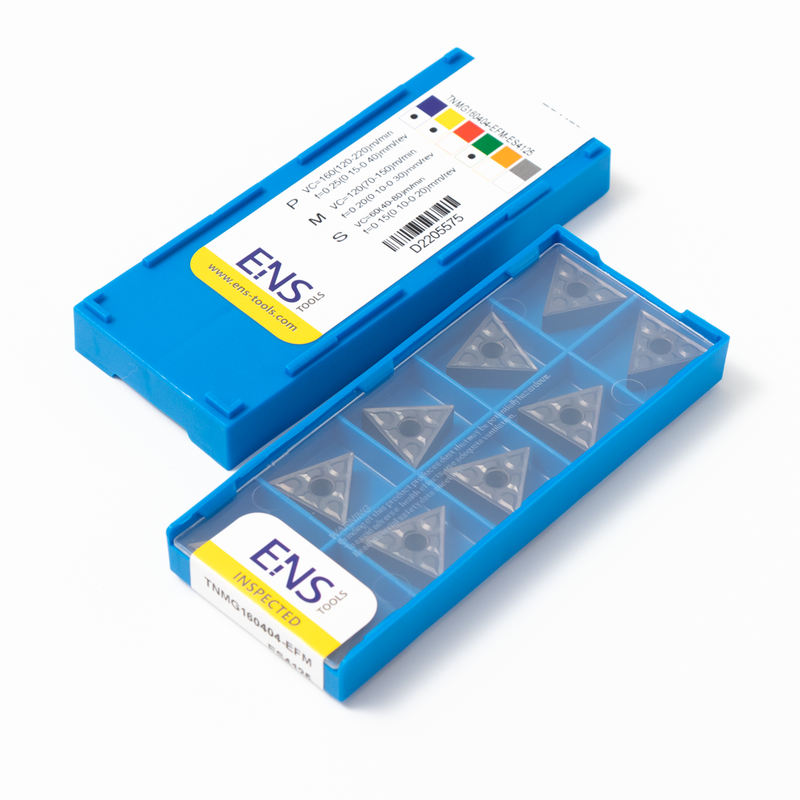

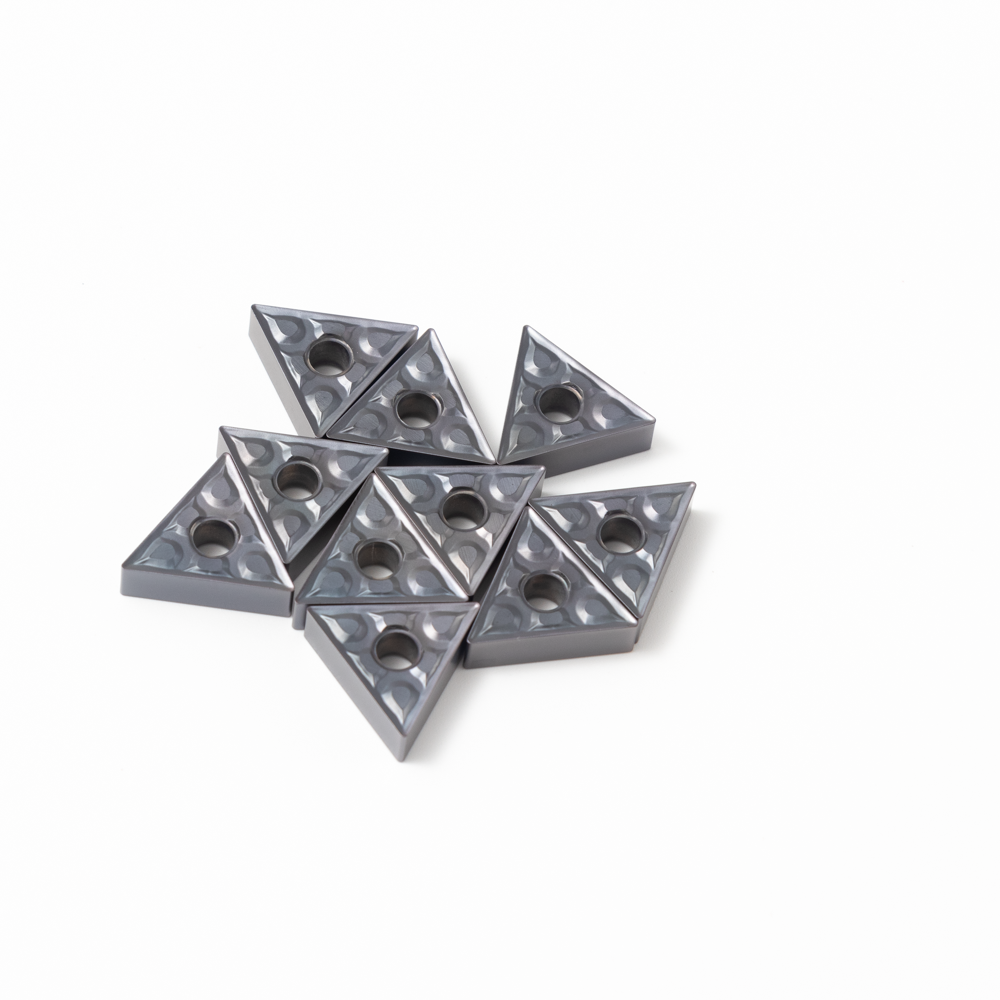

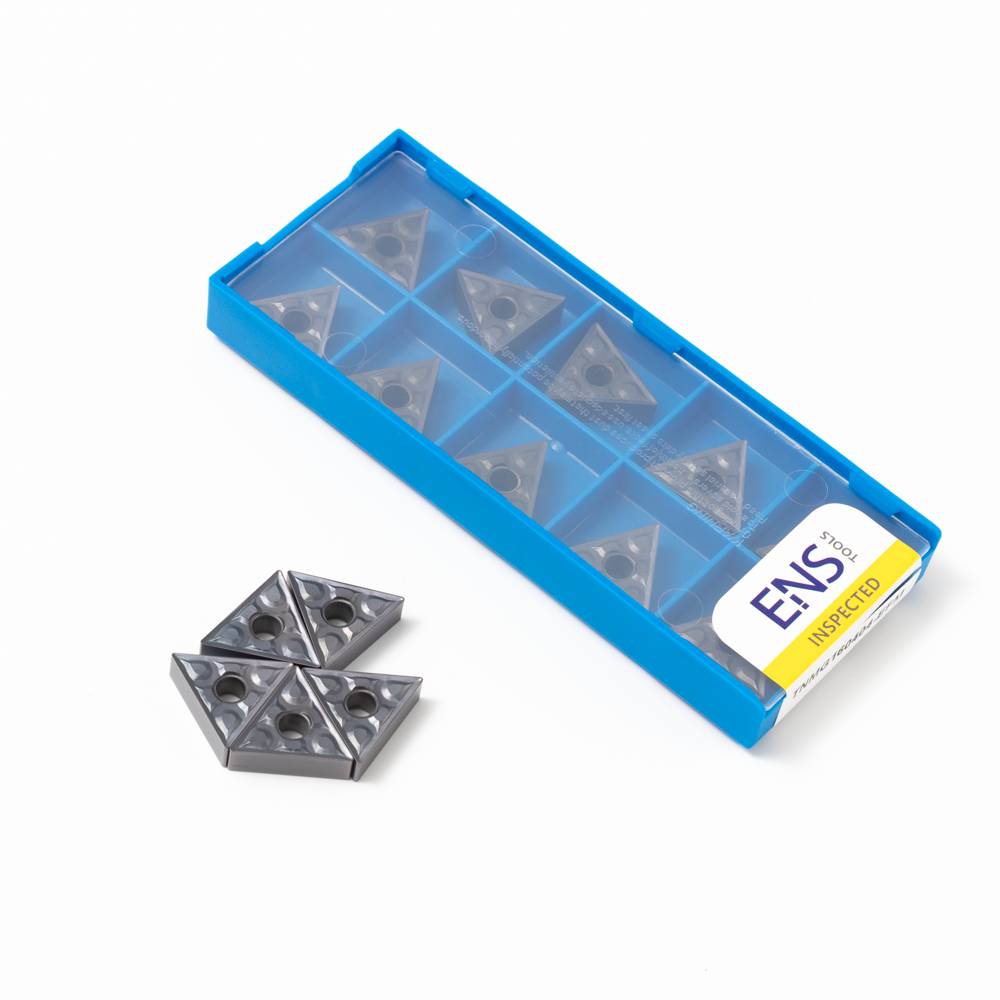

TNMG120408-NFM NS4125
Ens
Successful chip control depends on four factors: nose radius, depth of cut, feed rate, and insert geometry. A small nose radius has more control over chips than a large nose radius. A greater depth of cut will affect chip breaking, resulting in greater cutting forces for chip breaking and chip evacuation, depending on the workpiece material. Start with a low feed rate to ensure insert safety and surface quality; then increase the feed rate to improve chip breaking.
Using our Carbide Turning Inserts will continue to improve your current machine tooling to a large extent.
Steel | © | 0 | Q | o | ||||||||||||||||
,一 M Stainless Steel | OG | O | ||||||||||||||||||
/© | c M castiron | • e | ||||||||||||||||||
\ 5! f { N Non-ferrous Metal | . | |||||||||||||||||||
R A —1 L 1 S 1 | S Heat-resistant Alloy JiAlloy | O G | ||||||||||||||||||
H High Hardness Materials | ||||||||||||||||||||
Shape | OrderingCode | Dimensions(mm) | Coated-CVD | Coated-PVD | Uncoated | Cermet | CBN | >CD | ||||||||||||
L | D | s | d1 | R | E z | o I | 1 | NK1115 | | L 5 N | T- L M 2 N N | NS4115 NS4125 | in i N | NP9125 | | & L £ z | g 击 參 | NCBN125 | , 5 X/LZ 1 1。 NPCD125 | |||
▲ Finishing | TNMG160404-NF | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | • | |||||||||||||
TNMG160408-NF | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | ||||||||||||||
▲ SemMinishing | TNMG160404-NFM | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | |||||||||||||
TNMG160408-NFM | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | ||||||||||||||
TNMG160404-NM | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | ||||||||||||||
TNMG160408-NM | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | ||||||||||||||
TNMG160412-NM | 16.50 | 9.52 | 4.76 | 3.18 | 1.20 | . | ||||||||||||||
Medium | ||||||||||||||||||||
A | TNMG160404-NGM | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | |||||||||||||
TNMG160408-NGM | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | • | ||||||||||||||
Medium | ||||||||||||||||||||
A Finishing | TNGG160404R-S | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | |||||||||||||
TNGG160408R-S | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | ||||||||||||||
TNGG160404L-S | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | ||||||||||||||
TNGG160408L-S | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | ||||||||||||||
A SemMinishing | TNGG160404R | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | |||||||||||||
TNGG160408R | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | • | ||||||||||||||
TNGG160404L | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | ||||||||||||||
TNGG160408L | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | • | ||||||||||||||
SemMinishing | TNMG160408-NL | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | |||||||||||||
TNMG160408-NL | 16.50 | 9.52 | 4.76 | 3.18 | 1.20 | . | ||||||||||||||
A Roughing | TNMA160404 | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | 0 | o | ||||||||||||
TNMA160408 | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | o | |||||||||||||
TNMA160412 | 16.50 | 9.52 | 4.76 | 3.18 | 1.20 | • | o | |||||||||||||
A Medium | TNMG160404-NK1 | 16.50 | 9.52 | 4.76 | 3.18 | 0.40 | . | . | ||||||||||||
TNMG160408-NK1 | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | . | . | |||||||||||||
TNMG160412-NK1 | 16.50 | 9.52 | 4.76 | 3.18 | 1.20 | . | ||||||||||||||
A Roughing | TNMG160408-NK2 | 16.50 | 9.52 | 4.76 | 3.18 | 0.80 | • | . | ||||||||||||
TNMG160412-NK2 | 16.50 | 9.52 | 4.76 | 3.18 | 1.20 | . | • | |||||||||||||
