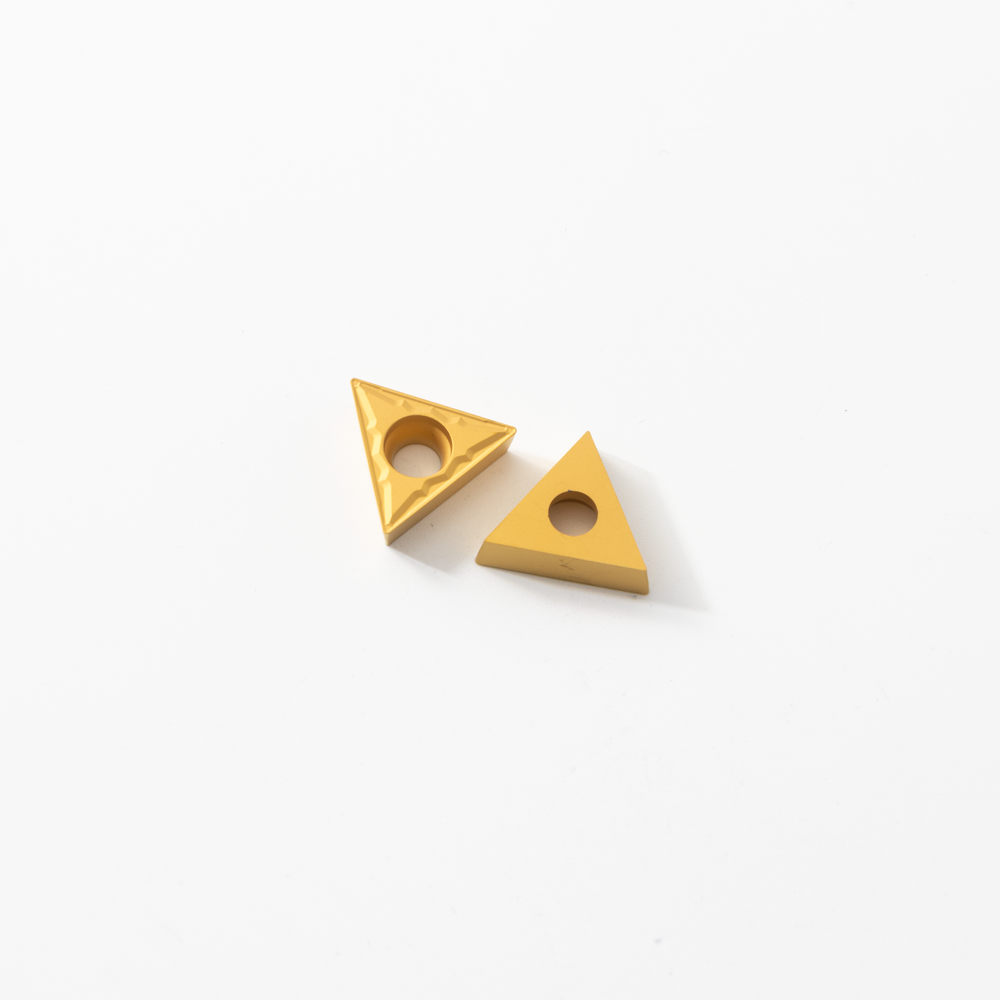

Insert TCMT110208/16T304 Carbide Turning Inserts For Universal

Brand : Ens Cutting
Materal: Carbide

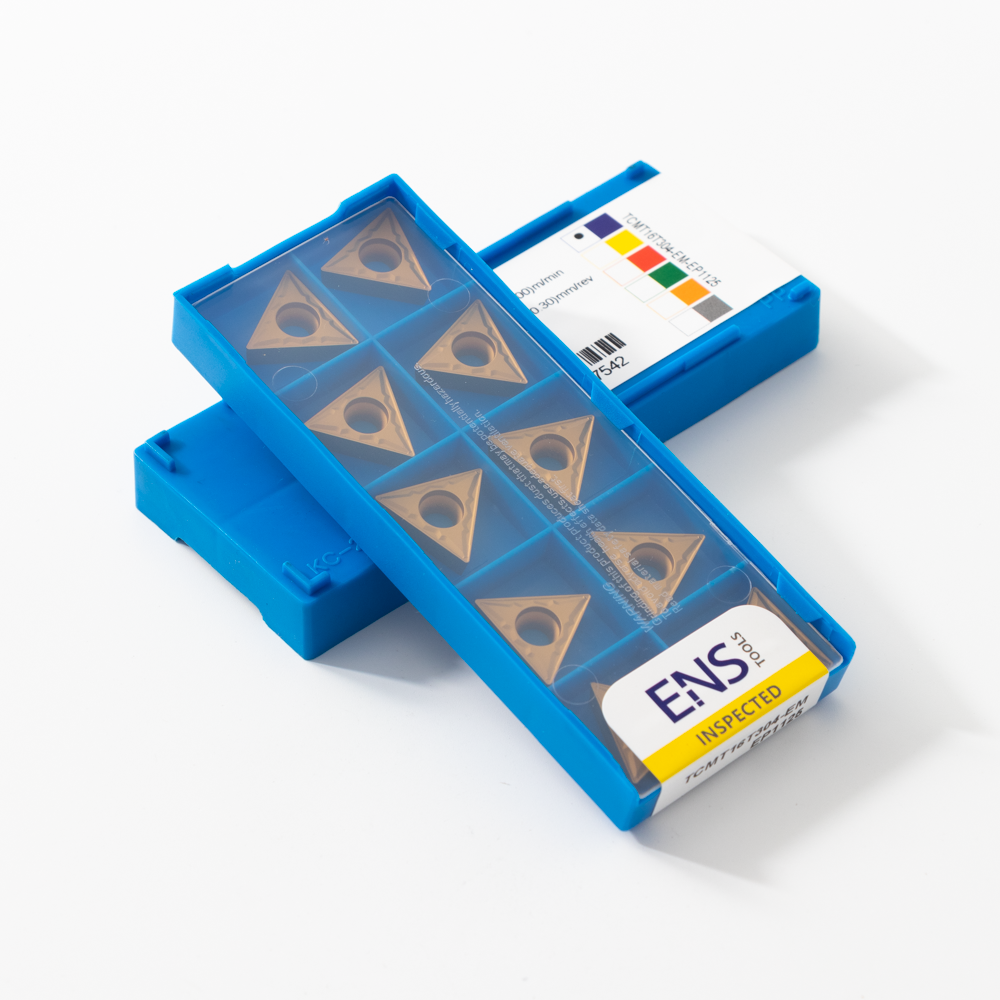

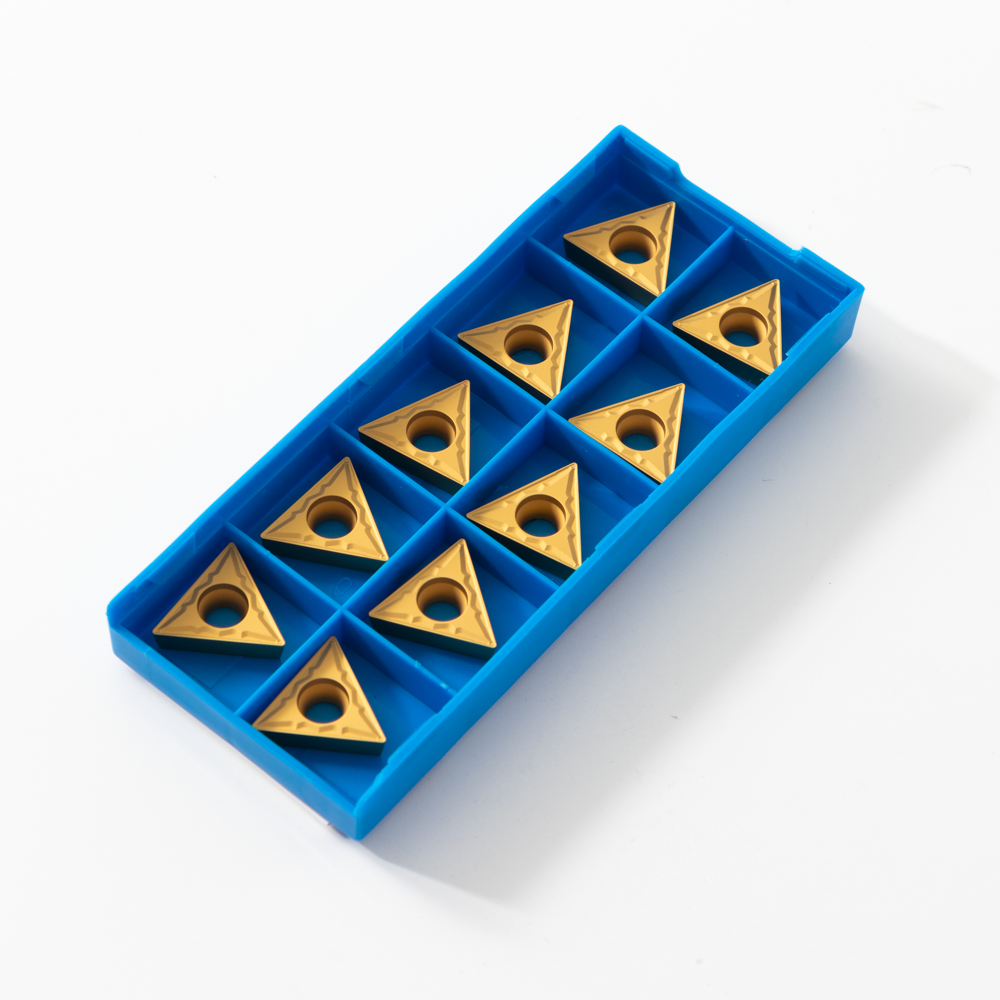

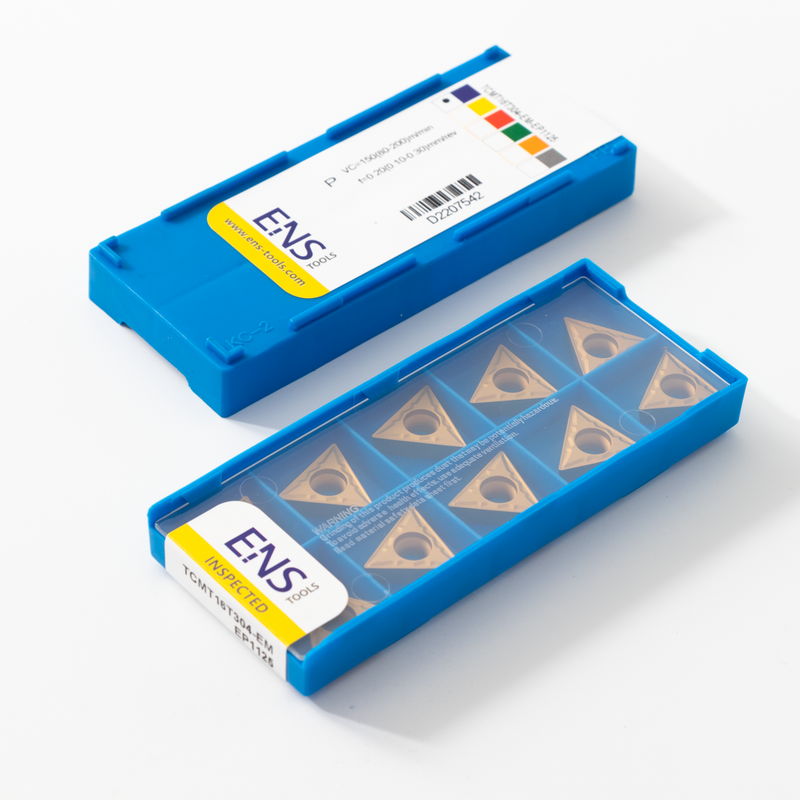

MOQ: 10pcs/box

Machining material: steel,Universal
Original place: ChangZhou,Jiangsu
Match holder:STFCR/L,STGCR/L....

Size:	TCMT090204-NF TCMT16T308 TCGT110204-NL
Availability:

Quantity:



Inquire

Model:
TCMT16T304-NF
Brand:
Ens

Product Description

Our Advantage

The company's Carbide Turning Inserts meet the needs of finishing, medium and rough machining. Wear-resistant, smooth chip breaking, high processing efficiency, can be used for automatic turning of stainless steel.

Sharp blade, highly ground and polished, better impact resistance, wear resistance, wide processing range, long service life.Strictly select raw materials, use modern production technology, and standardize product quality.

Product Description

TPGT/TCMT/TCGT/TCGW Rhombic 55° .with Hole
Turning Inserts (Positive) O continuous (s 1												ght Interruption Inte										rruption
	QO		QI		Ste	el									O	G
			M	St	ainles	sStee									o	Q			o
		"		Non	Cast -fftrrn	ron ha Ma	tai				.		—				■	€	.		.	€	,	■
	L$」		S Heat-resistant Alloy,TiAlloy								—				0	G
			H High Hardness Materials																		O G
Shape		OrderingCode	Dimensions(mm)					Coated-CVD					Coated-PVD				Uncoaled		Cermet		CBN		PCD
			L	D	s	d1	R	NP1115	w	T~ 0. N	s L	NK1125 I	g CM L 5 N	NM3125	s I	I	s L L N	富 z	NP115T \|	§	s I	I	NPCD115 \|	8 z
		TBGT060102L-F	6	3.97	1.59	2.3	0.2								•				.
		TBGT060104L-F	6	3.97	1.59	2.3	0.4								.				.
		TPGH080202L-F	8	4.76	2.38	2.3	0.2												•
		TPGH080204L-F	8	4.76	2.38	2.3	0.4								.				.
IM ■ a Finishing		TPGH090202L-F	9	5.56	2.38	3	0.2								•				.
		TPGH090204L-F	9	556	2.38	3	0.4								.				•
		TPGH110302L-F	11	6.35	3.18	33	0.2								.				.
		TPGH110304L-F	11	6.35	3.18	3.3	0.4								•				.
A Finishing		TCMT090204-NF	9.6	5.56	2.38	2£	0.4									•
		TCMT110204-NF	11	6.35	2.38	2.8	0.4									.
		TCMT110208-NF	11	6.35	2.38	2£	0.8									.
		TCMT16T304-NF	16.5	932	3.97	4A	0.4									.
		TCMT16T308-NF	16.5	9.52	3.97	4.4	0.8									.
Medium		TCMT090204-NM	9.6	5.56	2.38	2.5	0.4	.	o		•
		TCMT110204-NM	11	6.35	2.38	2.8	0.4	•	o		.
		TCMT110208-NM	11	6.35	2.38	2.8	0.8	.	o		.
		TCMT16T304-NM	16.5	9.52	3.97	4.4	0.4	•	o		.
		TCMT16T308-NM	16.5	9.52	3.97	4.4	0.8	.	o		.
		TCGW110204-Z3	11	635	2.38	2.8	0.4														.
9		TCGW110208-Z3	11	635	2.38	2.8	0.8														.
CBN		TCGW16T304-Z3	16.5	9.52	3.97	4.4	0.4														•
CBN		TCGW16T308-Z3	16.5	9.52	3.97	4.4	0.8														.
		TPGT110302-Z1	11	6.35	3.18	3.4	02
		TPGT110304-Z1	11	6.35	3.18	3.4	0A
▼ PCD		TPGT160302-Z1	16.5	9.52	3.18	4.4	02
		TPGT160304-Z1	16.5	9.52	3.18	4.4	0.4
		TPGT160308-Z1	16.5	9.52	3.18	4.4	0.8
A ForH		TCGT090202-NL	9.6	5.56	2.38	2.5	02
		TCGT090204-NL	9.6	5.56	2.38	2.5	0.4										•
		TCGT110202-NL	11	6.35	2.38	2.8	02										•
		TCGT110204-NL	11	6.35	2.38	2.8	0.4										•
		TCGT110208-NL	11	6.35	2.38	2.8	0£										.
		TCGT16T302-NL	16.5	9.52	3.97	4.4	02										.
		TCGT16T304-NL	16.5	9.52	3.97	4.4	0.4										.
		TCGT16T308-NL	16.5	9.52	3.97	4.4	0.8										.
二 Roughing		TCMW16T304	16.5	9.52	3.97	4.4	0.4											r)
		TCMW16T308	16.5	9.52	3.97	4.4	0.8											0
