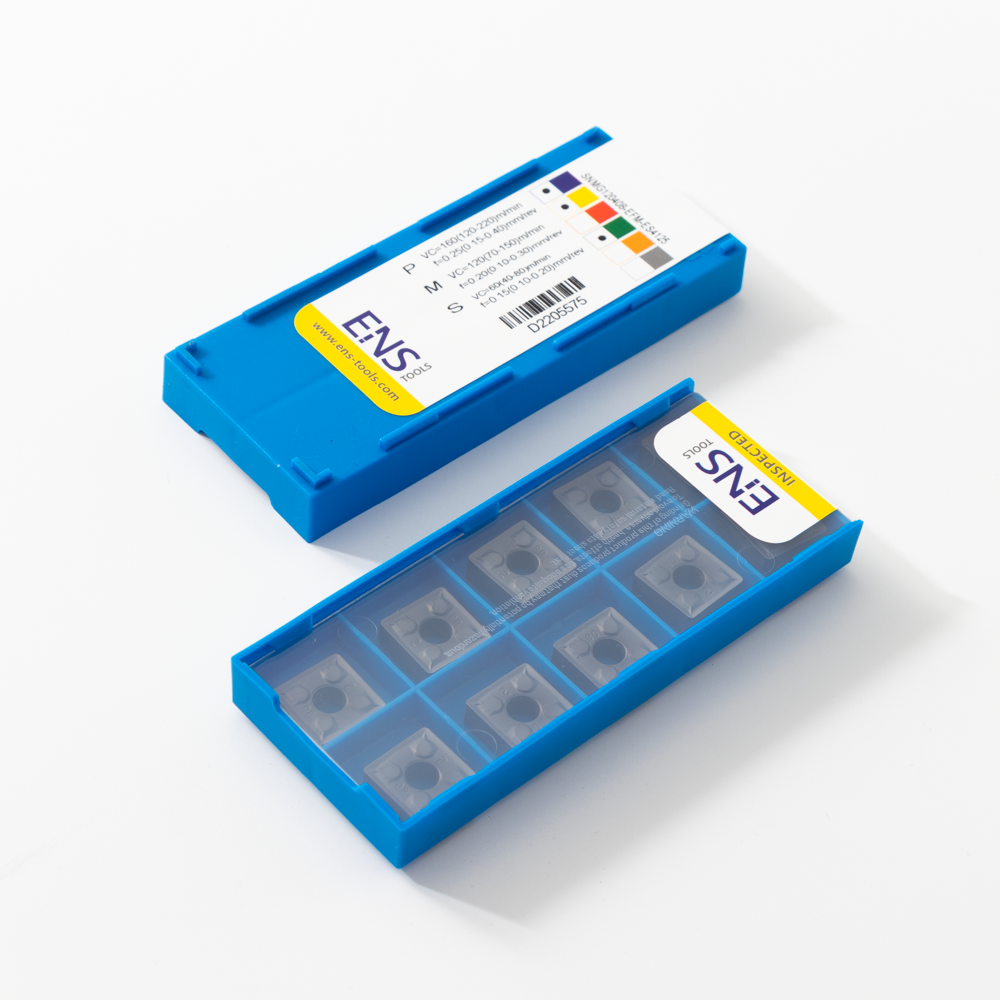

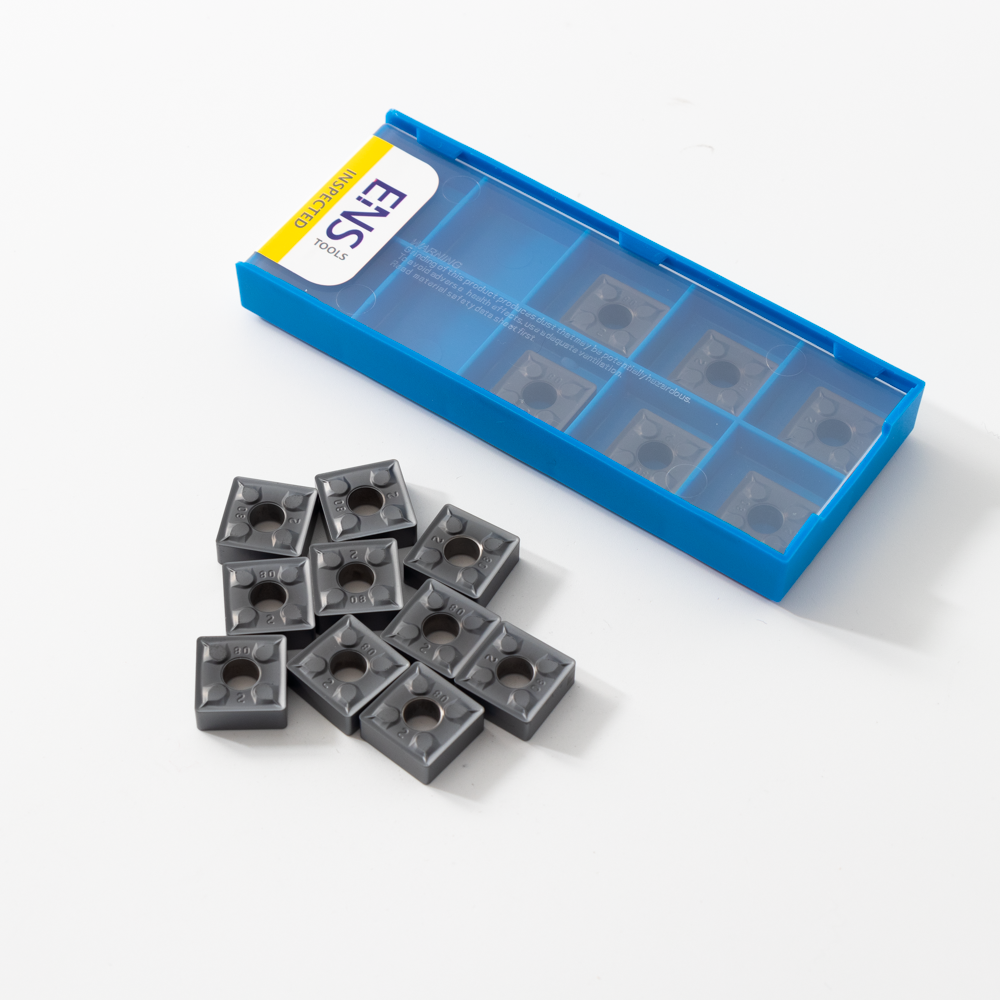

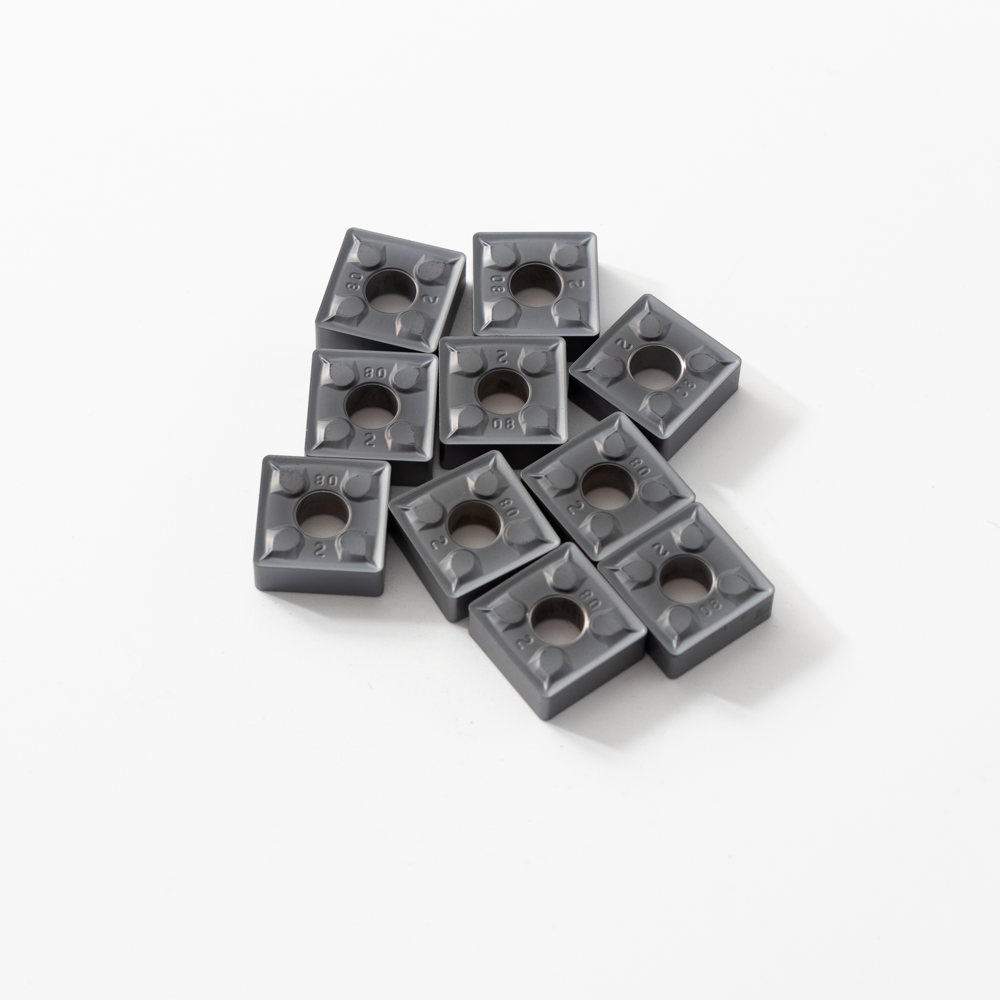

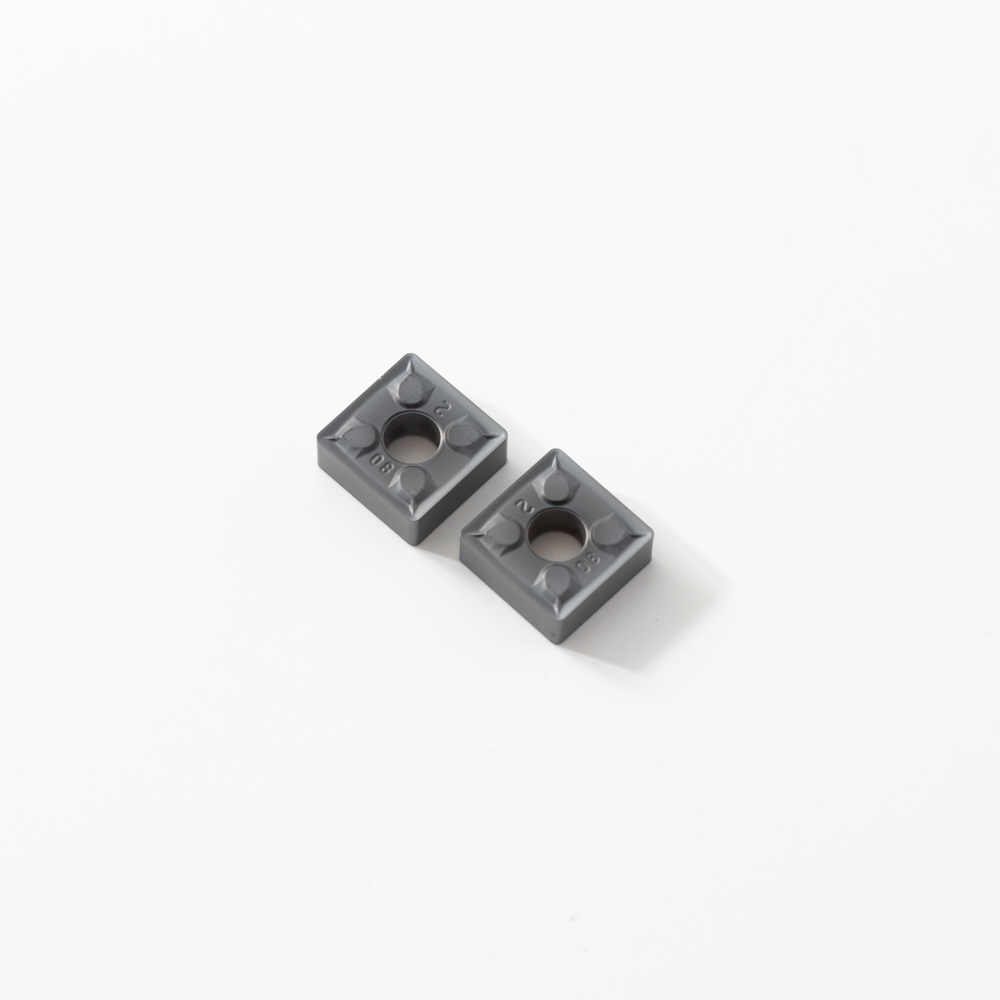

SNMG120408-NM
Ens
Improve productivity
Post-coating treatment can reduce the coating stress and improve the adhesion performance of the coating.
Toughness and wear resistance.
Better blade wear recognition
The company has a strong professional team with many years of experience and rich experience, and can provide a complete range of technical solutions. Selection and adjustment of cutting conditions, processing solutions for composite materials and difficult-to-cut materials, etc., to solve problems such as cutting winding, knife vibration, and breakage during processing.
Shape | OrderingCode | Dimensions(mm) | Coated-CVD | Coated-PVD | Ormet | CBN | PCD | ||||||||||||||||||
L | D | s | d1 | R | s L a. N | L N | L 0： N | S L — s N | L 5 N | 8 L L i | g OU £ i | s & N | s z | s i | N | L L 性 | 1 a £ N | 9 1 | 1 | 52 a ¥ N | o Z | ||||
SNMG120404-NF | 12.70 | 12.70 | 4.76 | 5.16 | 0.40 | . | |||||||||||||||||||
ns Rntehinj | SNMG12O4O8・NF | 12.70 | 12.70 | 4.76 | 5.16 | O.SO | • | O | |||||||||||||||||
SNMG120404-NFM | 12.70 | 12.70 | 4.76 | 5.16 | 0.40 | • | |||||||||||||||||||
. | SNMG120408-NFM | 12.70 | 12.70 | 4.76 | 5.16 | O.SO | • | ||||||||||||||||||
Sem»-fini«hing | |||||||||||||||||||||||||
SNMG120404-NM | 12.70 | 12.70 | 4.76 | 5.16 | 0.40 | • | |||||||||||||||||||
SNMG120408-NM | 12.70 | 12.70 | 4.76 | 5.16 | 0.30 | • | |||||||||||||||||||
SNMG120412-NM | 12.70 | 12.70 | 4.76 | 5.16 | 1.20 | . | |||||||||||||||||||
Medium | |||||||||||||||||||||||||
— Medium | SNMG120404-NGM | 12.70 | 12.70 | 4.76 | 5.16 | 0.40 | • | • | |||||||||||||||||
SNMG120408-NGM | 12.70 | 12.70 | 4.76 | 5.16 | 0.80 | • | • | ||||||||||||||||||
Roughing | SNMG120408-NR | 12.70 | 12.70 | 4.76 | 5.16 | 0,80 | • | ||||||||||||||||||
SNMG120412-NR | 12.70 | 12.70 | 4.76 | 5.16 | 120 | • | |||||||||||||||||||
SNMG150408-NR | 15.87 | 15.87 | 635 | 6.35 | 0.80 | • | |||||||||||||||||||
SNMG150612-NR | 15.87 | 15.87 | 6.35 | 6.35 | 1.20 | • | |||||||||||||||||||
SNMG190612-NR | 19.05 | 19.05 | 6.35 | 7.94 | 1.20 | • | |||||||||||||||||||
SNMG190616-NR | 19.05 | 19.05 | 6.35 | 7.94 | 1.60 | . | |||||||||||||||||||
SNMG120408-NL | 12.70 | 12.70 | 4.76 | 5.16 | 0.80 | • | • | ||||||||||||||||||
SNMG120412-NL | 12.70 | 12.70 | 4.76 | 5.16 | 120 | • | • | ||||||||||||||||||
. | SNMA120404 | 12.90 | 12.70 | 4.76 | 5.16 | 0.40 | c | ||||||||||||||||||
SNMA120408 | 12.90 | 12.70 | 4.76 | 5.16 | 0.80 | • | • | ||||||||||||||||||
SNMA120412 | 12.90 | 12.70 | 4.76 | 5.16 | 120 | ||||||||||||||||||||
Roughing | |||||||||||||||||||||||||
SNMG120408-NK1 | 12.70 | 12.70 | 4.76 | 5.16 | 0.80 | • | |||||||||||||||||||
. | SNMG120412-NK1 | 12.70 | 12.70 | 4.76 | 5.16 | 1.20 | • | • | |||||||||||||||||
SNMG150608-NK1 | 15.87 | 15.87 | 6.35 | 6.35 | 0.80 | • | o | ||||||||||||||||||
SNMG150612-NK1 | 15.87 | 15.87 | 6.35 | 6.35 | 120 | o | |||||||||||||||||||
Medium | SNMG150616-NK1 | 15.87 | 15.87 | 6.35 | 6.35 | 1.60 | o | o | |||||||||||||||||
SNMG190612-NK1 | 19.05 | 19.30 | 6.35 | 7.94 | 150 | 0 | o | ||||||||||||||||||
. | SNMG190616-NK1 | 19.05 | 19.30 | 6.35 | 794 | 1.60 | 0 | o | |||||||||||||||||
SNMG120408-NK2 | 12.70 | 12.70 | 4.76 | 5.16 | 0.80 | • | • | ||||||||||||||||||
SNMG120412-NK2 | 12.70 | 12.70 | 4.76 | 5.16 | 1.20 | • | • | ||||||||||||||||||
