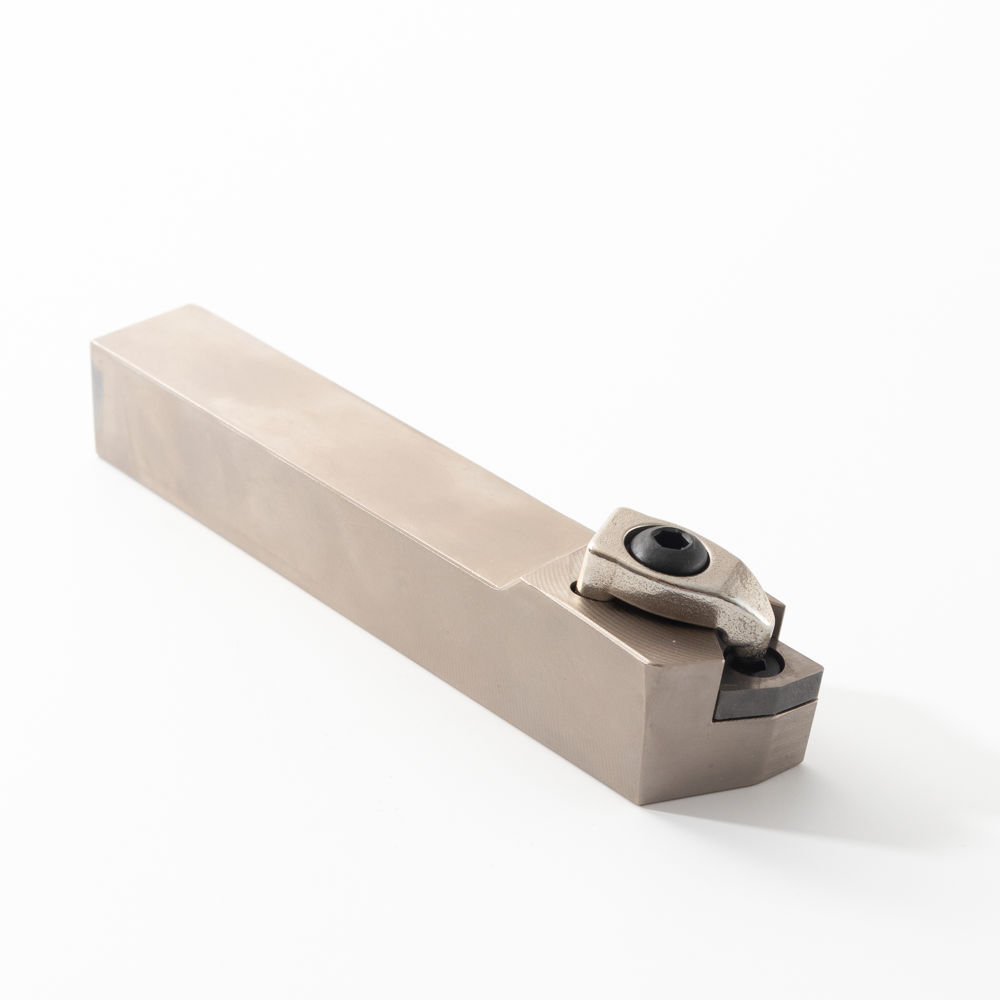

DWLNR/L/BWLNR/L
Ens
Do you need a turning tool that ensures chip control, process safety and the highest part accuracy? Use our holders and inserts to achieve the best possible performance. Whether it's long cuts or high metal removal rates, our tools get the job done.
We are cutting tools manufacturer, our main products are turning insert, turning tools holder, and endmills, which has exported to many country.
Our goal is to establish longer cooperation relationship with our clients to have a win-win situation.Generally speaking, comparing to some Japanese famous brand, our Nicecutt products have 20% longer tool life, but in half price. You couldd see the case studies in the CASE STUDY tab.

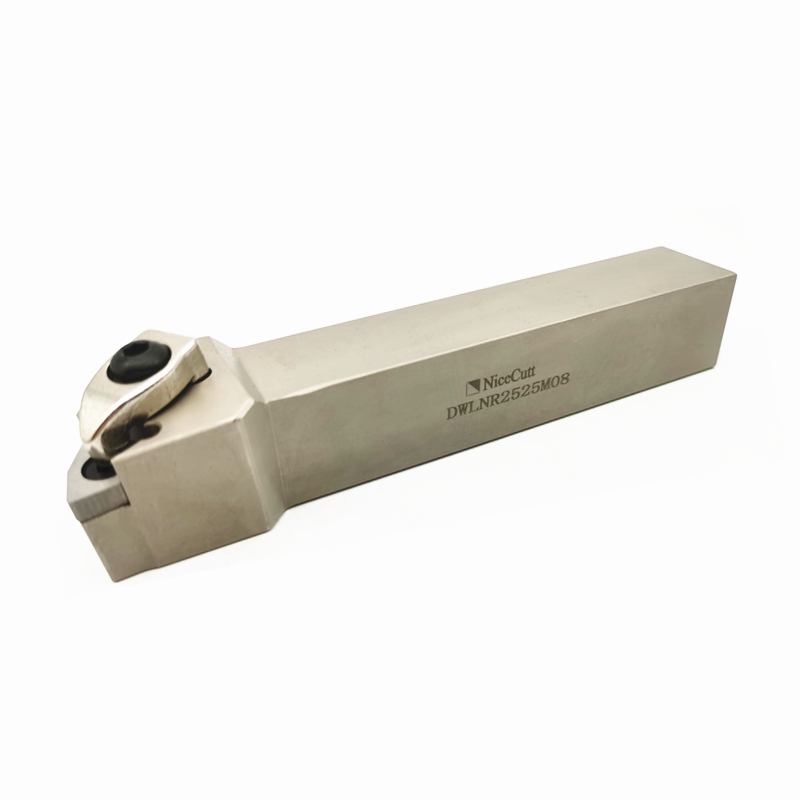

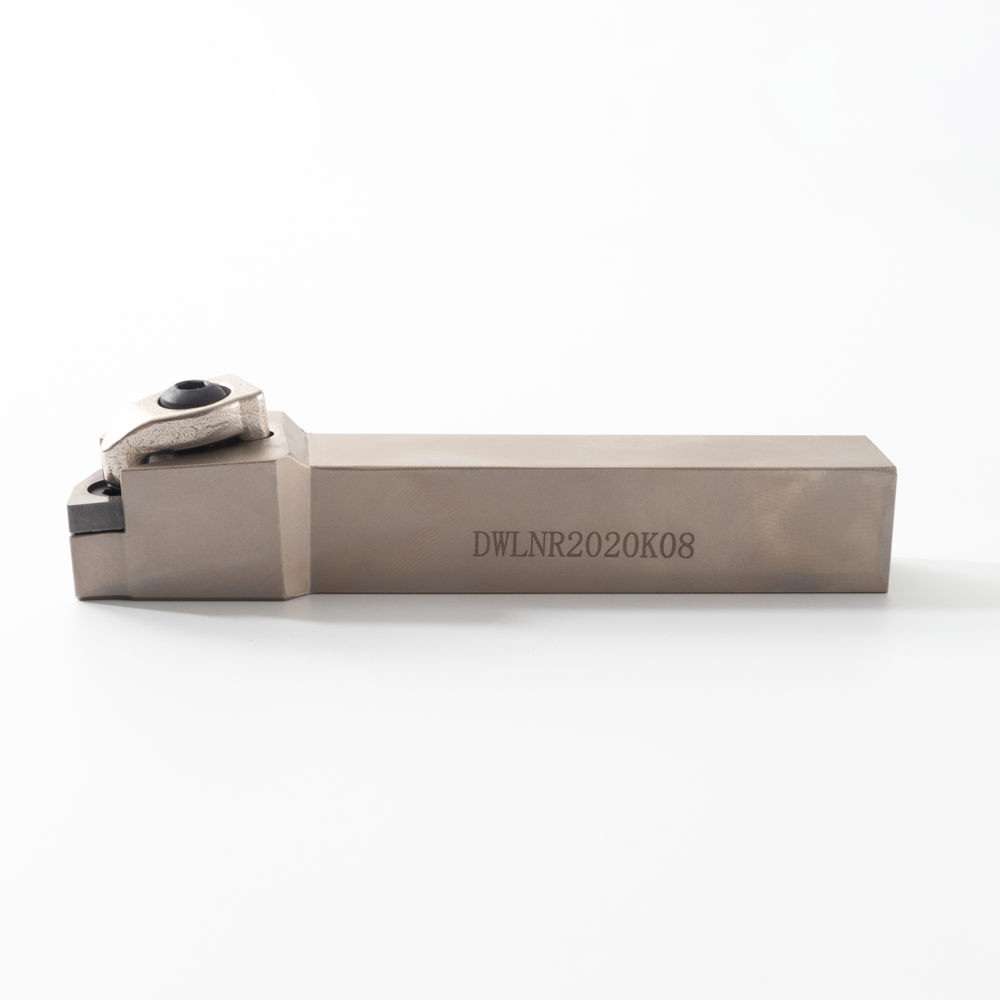

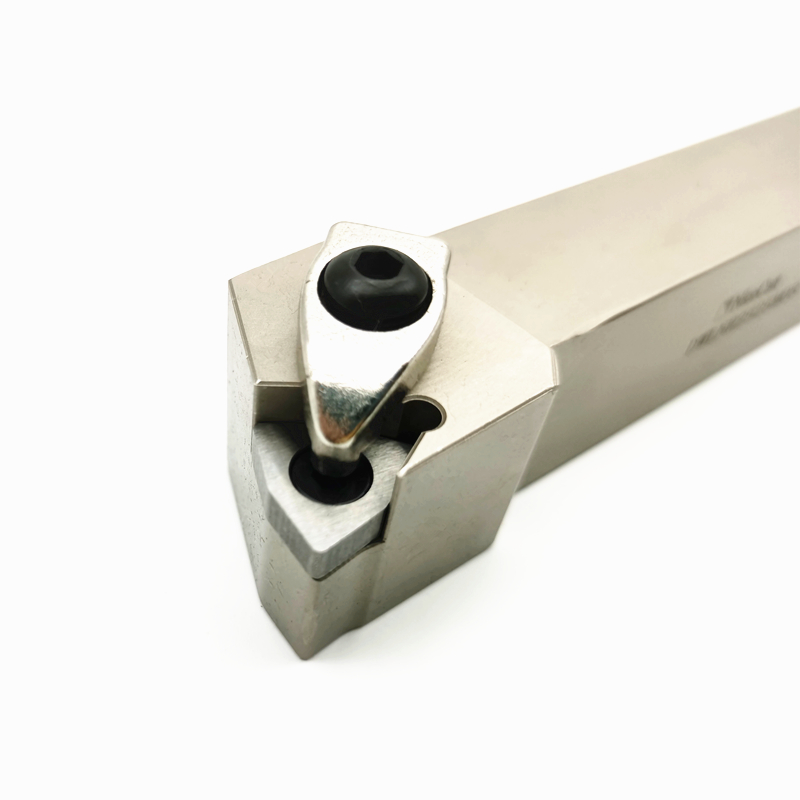

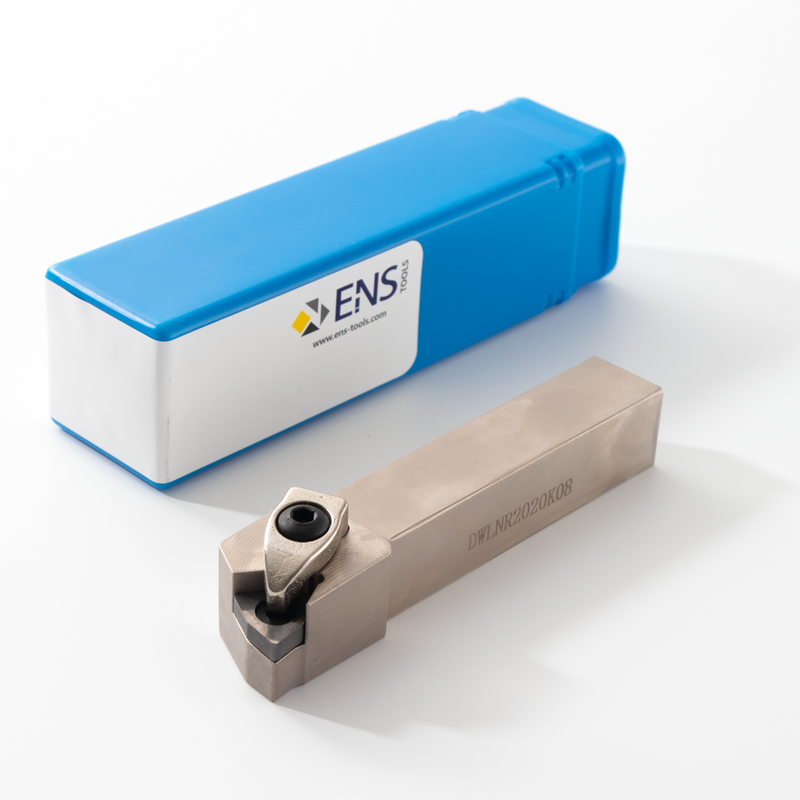

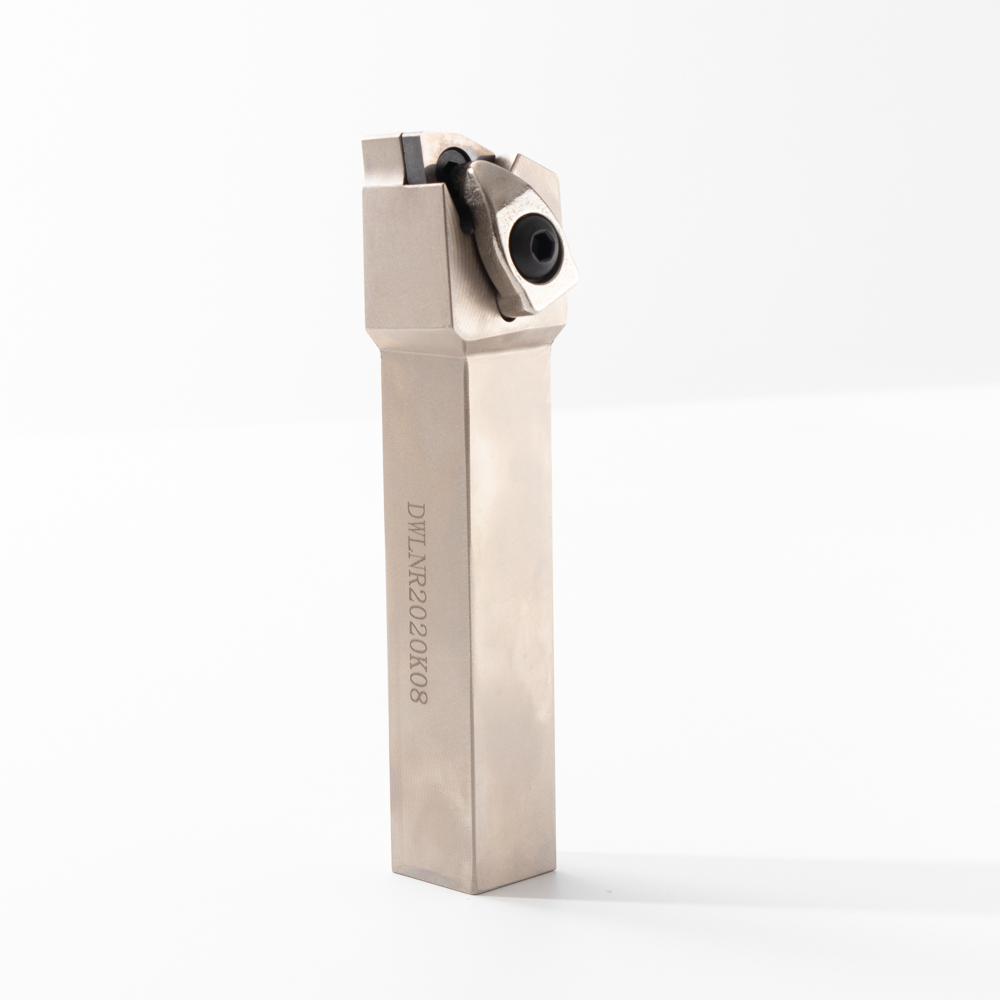

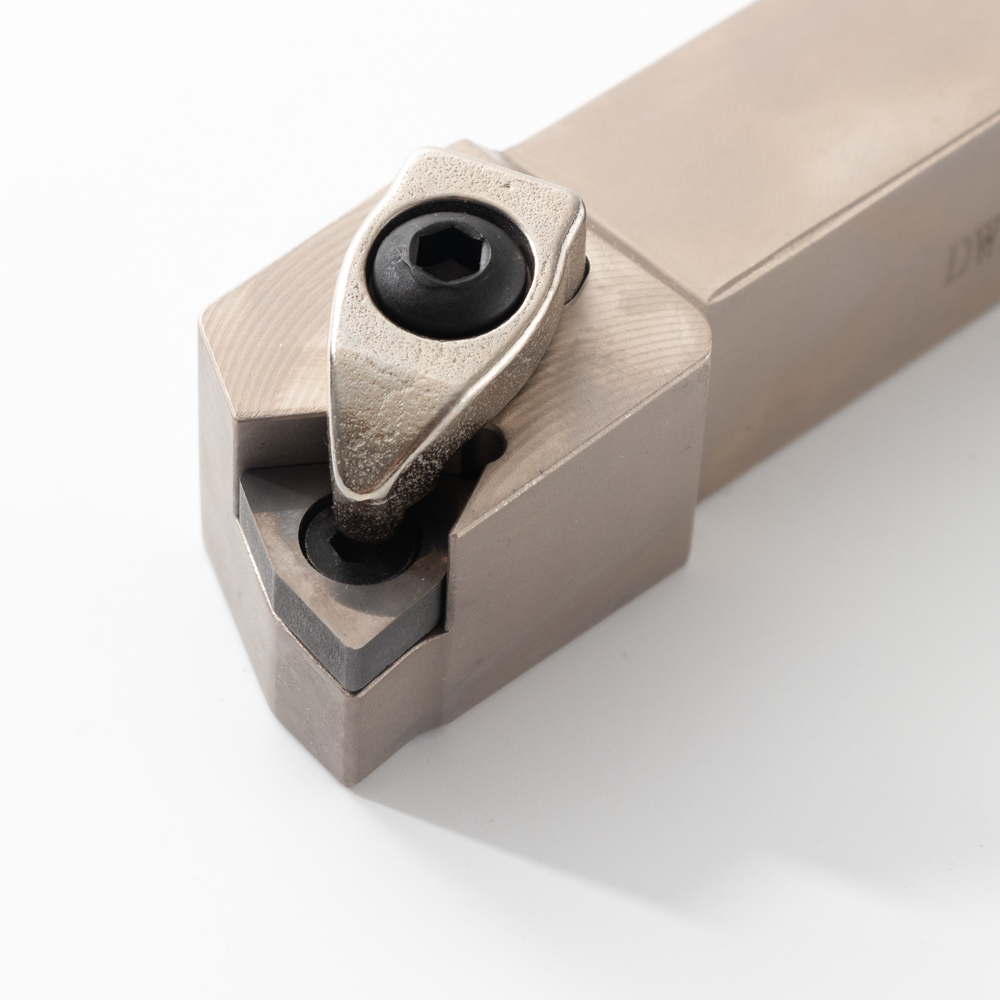

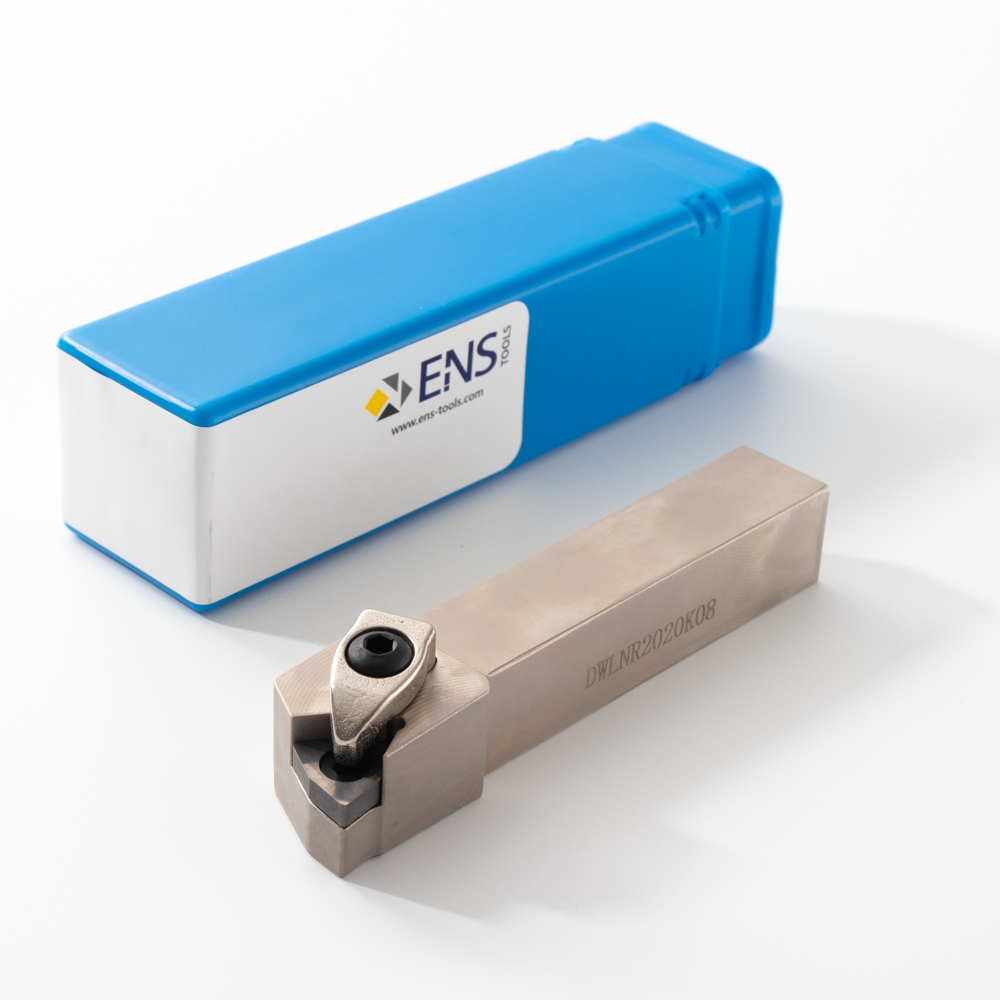

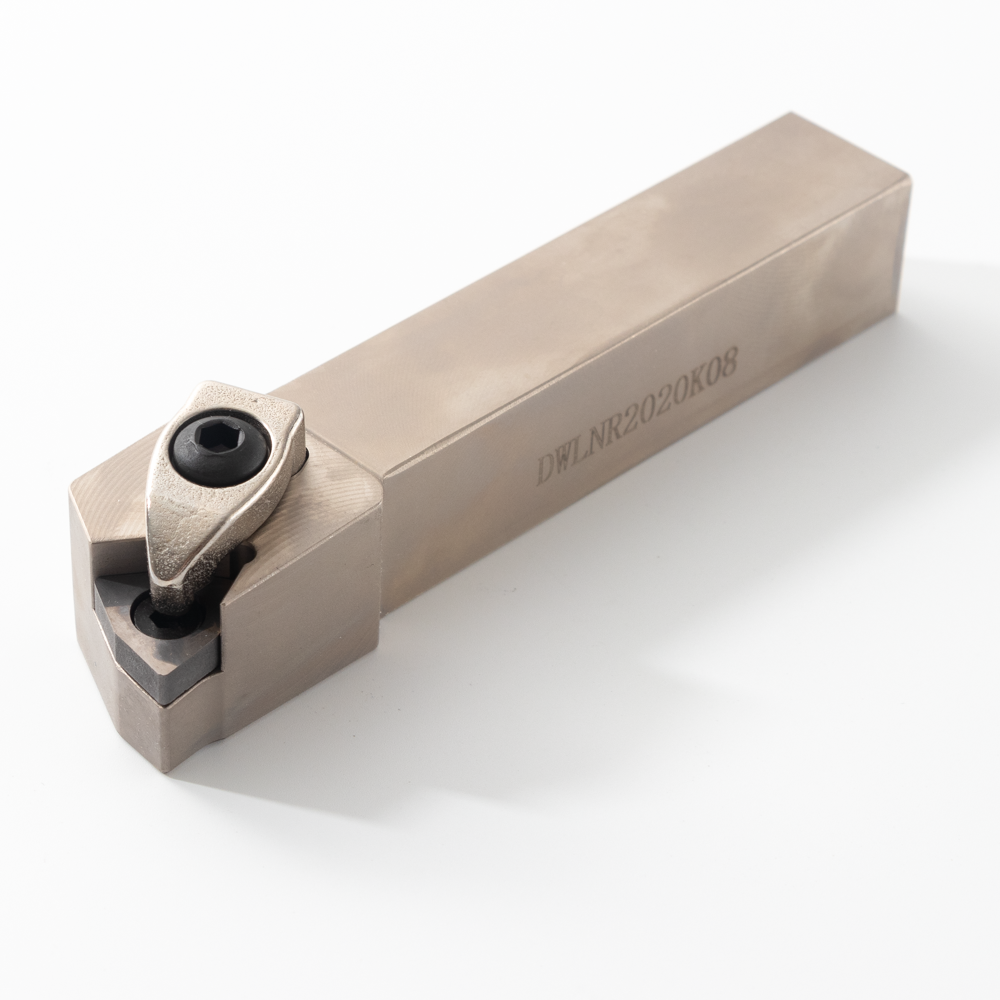

DWLNR/L
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplate | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | V | 0 | V | Q | T | |||
DWLNR/L1616H06 | . | . | 16 | 16 | 100 | 28 | 16 | 20 | WN”0604 | WN-D0603 | DXD0512 | DYB2313 | DGD0520 | DTN0814 | L4.0 |
DWLNR/L2020K06 | . | . | 20 | 20 | 125 | 28 | 20 | 25 | |||||||
DWLNR/L2525M06 | . | . | 25 | 25 | 150 | 30 | 25 | 32 | |||||||
DWLNR/L1616H08 | . | . | 16 | 16 | 100 | 30 | 16 | 20 | WN"0804 | WN-D0804 | DXD0614 | DYB2214 | DGD0520 | DTN0814 | L4.0 |
DWLNR/L2020K08 | . | . | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
DWLNR 儿2525M08 | . | . | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
DWLNR/L3232P08 | . | . | 32 | 32 | 170 | 35 | 32 | 40 | |||||||
BWLNR/L
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplate | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | V | 二 | t | R | I | c | ||
BWLNR/L1616H06 | O | o | 16 | 16 | 100 | 28 | 16 | 20 | WN"0604 | \W-B06O3 | CTM5-S | BW06 | BCS06 | CR05 | L2.5 L3.0 |
BWLNR/L2020K06 | 0 | o | 20 | 20 | 125 | 28 | 20 | 25 | |||||||
BWLNR/L2525M06 | 0 | o | 25 | 25 | 150 | 30 | 25 | 32 | |||||||
BWLNR/L1616H08 | . | . | 16 | 16 | 100 | 30 | 16 | 20 | WN"0804 | WN-B0804 | CTM6-S | BW08 | BCS08 | CR07 | L3.0 L4.0 |
BWLNR/L2020K08 | . | . | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
BWLNR/L2525M08 | . | • | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
Do you need a turning tool that ensures chip control, process safety and the highest part accuracy? Use our holders and inserts to achieve the best possible performance. Whether it's long cuts or high metal removal rates, our tools get the job done.
We are cutting tools manufacturer, our main products are turning insert, turning tools holder, and endmills, which has exported to many country.
Our goal is to establish longer cooperation relationship with our clients to have a win-win situation.Generally speaking, comparing to some Japanese famous brand, our Nicecutt products have 20% longer tool life, but in half price. You couldd see the case studies in the CASE STUDY tab.
DWLNR/L
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplate | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | V | 0 | V | Q | T | |||
DWLNR/L1616H06 | . | . | 16 | 16 | 100 | 28 | 16 | 20 | WN”0604 | WN-D0603 | DXD0512 | DYB2313 | DGD0520 | DTN0814 | L4.0 |
DWLNR/L2020K06 | . | . | 20 | 20 | 125 | 28 | 20 | 25 | |||||||
DWLNR/L2525M06 | . | . | 25 | 25 | 150 | 30 | 25 | 32 | |||||||
DWLNR/L1616H08 | . | . | 16 | 16 | 100 | 30 | 16 | 20 | WN"0804 | WN-D0804 | DXD0614 | DYB2214 | DGD0520 | DTN0814 | L4.0 |
DWLNR/L2020K08 | . | . | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
DWLNR 儿2525M08 | . | . | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
DWLNR/L3232P08 | . | . | 32 | 32 | 170 | 35 | 32 | 40 | |||||||
BWLNR/L
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplate | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | V | 二 | t | R | I | c | ||
BWLNR/L1616H06 | O | o | 16 | 16 | 100 | 28 | 16 | 20 | WN"0604 | \W-B06O3 | CTM5-S | BW06 | BCS06 | CR05 | L2.5 L3.0 |
BWLNR/L2020K06 | 0 | o | 20 | 20 | 125 | 28 | 20 | 25 | |||||||
BWLNR/L2525M06 | 0 | o | 25 | 25 | 150 | 30 | 25 | 32 | |||||||
BWLNR/L1616H08 | . | . | 16 | 16 | 100 | 30 | 16 | 20 | WN"0804 | WN-B0804 | CTM6-S | BW08 | BCS08 | CR07 | L3.0 L4.0 |
BWLNR/L2020K08 | . | . | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
BWLNR/L2525M08 | . | • | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
