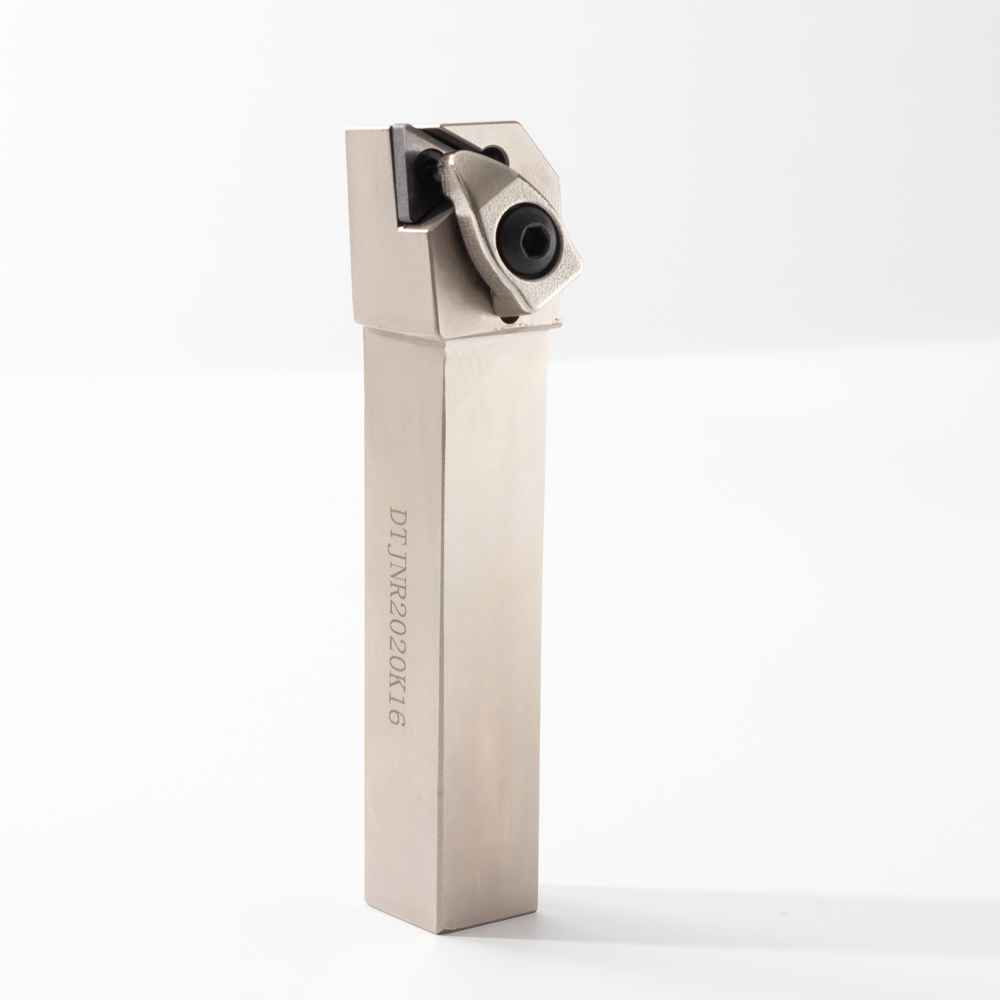

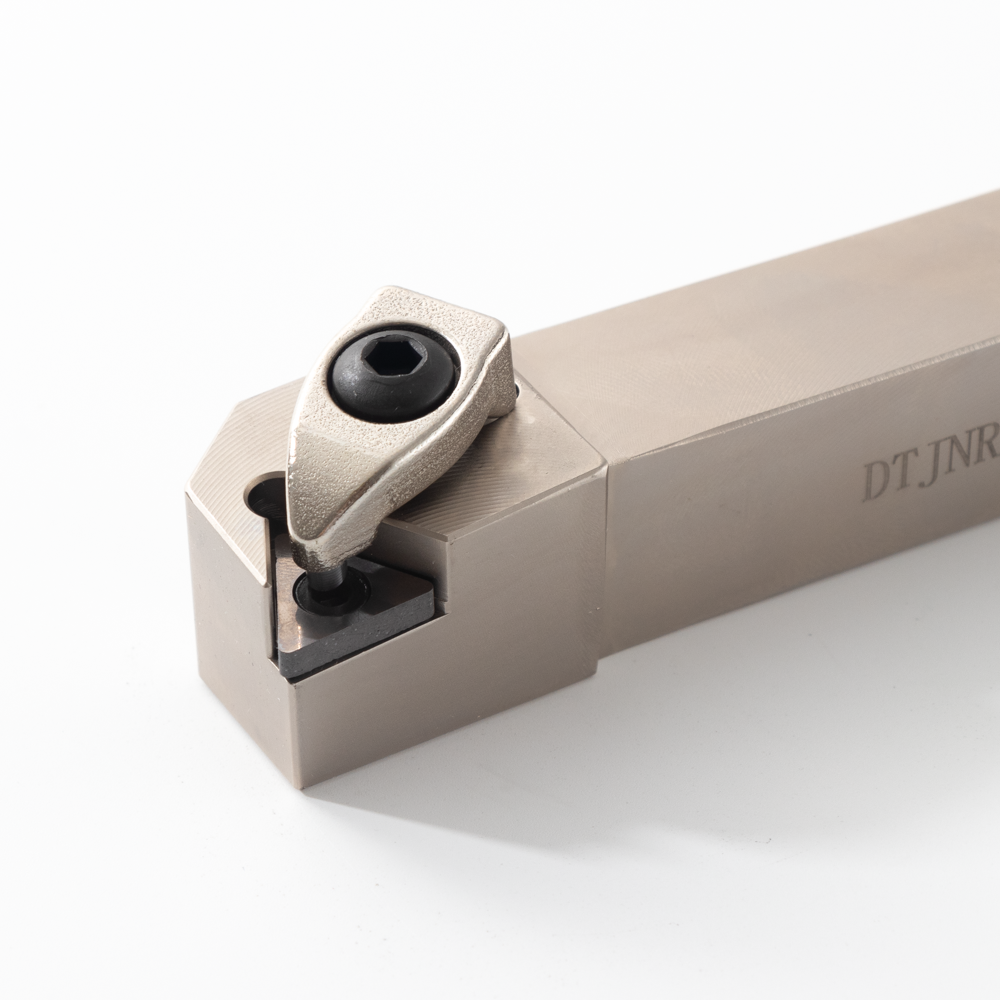

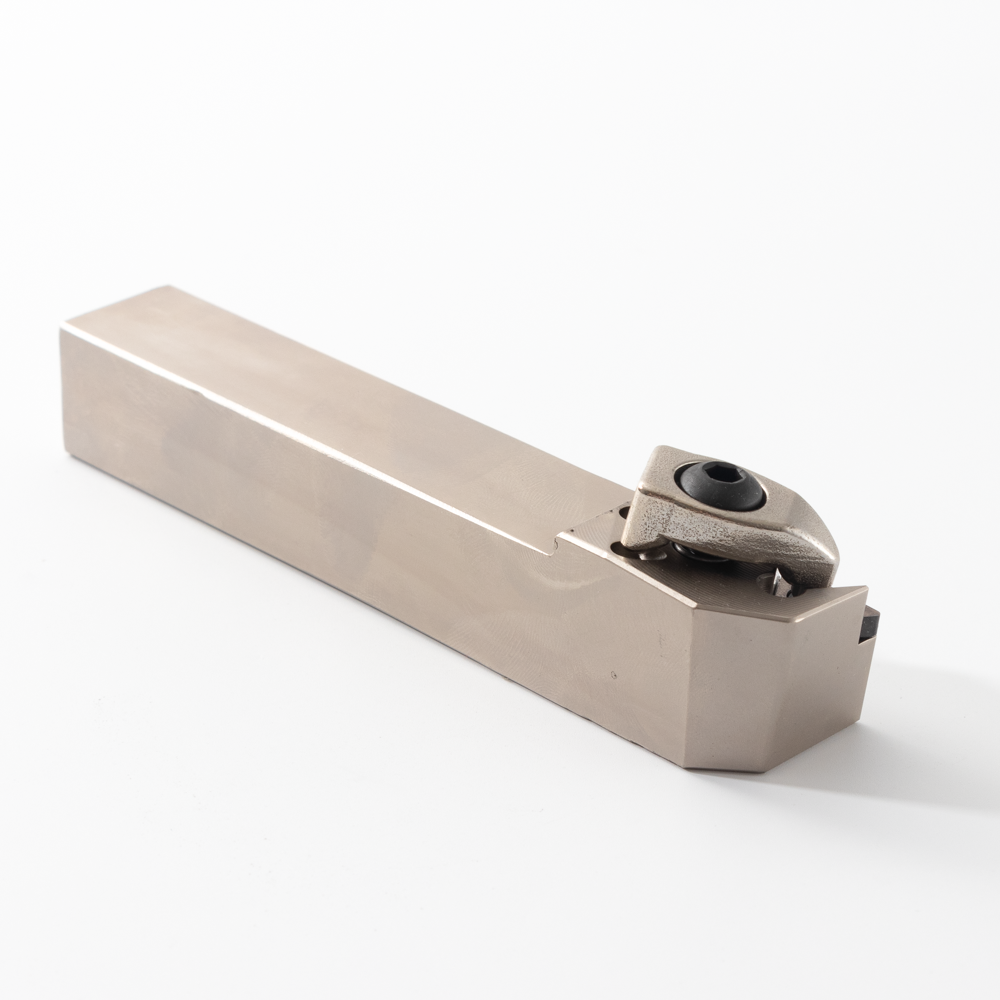

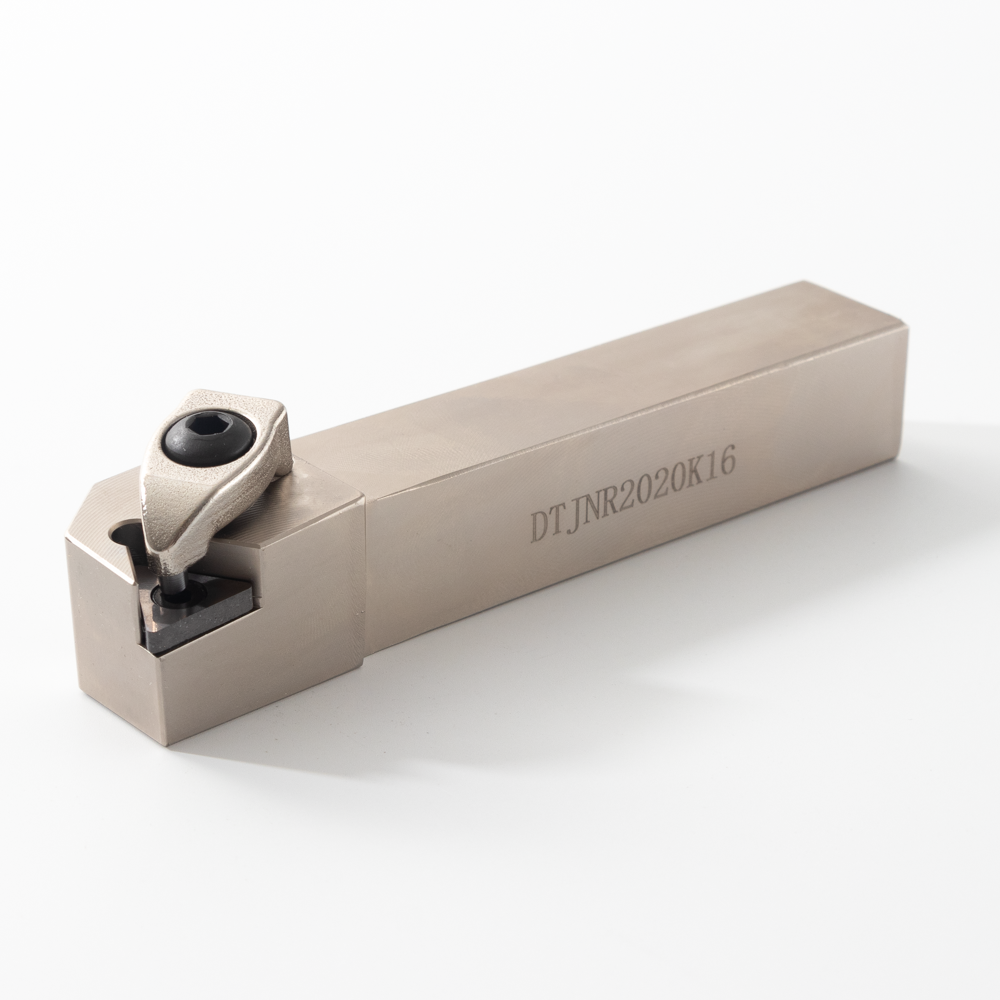

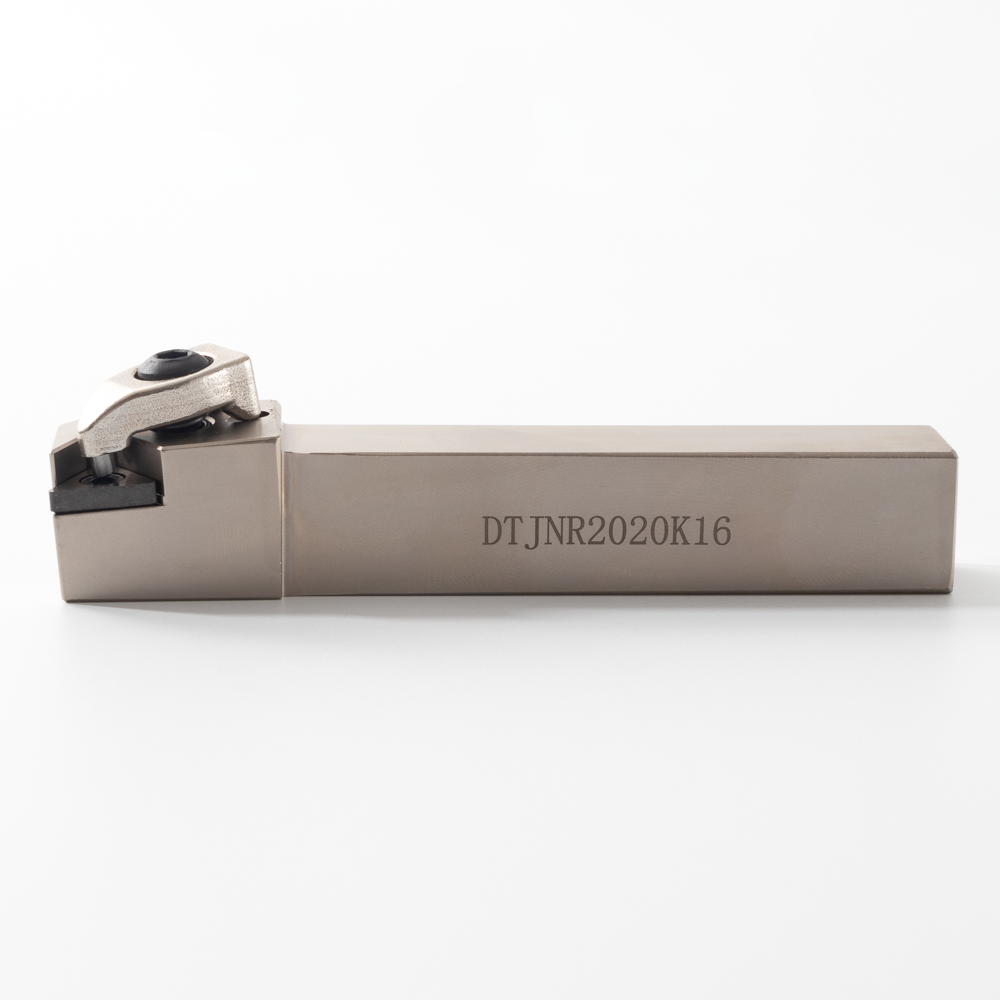

DTJNR/L1616H16
Ens
When choosing a turning insert, there are many parameters to consider. To maximize metal removal, choose a ductile matrix that resists plastic deformation and a post-treatment that excels in interrupted cutting operations. Be sure to choose turning inserts with consistent, predictable performance and coatings that improve tool wear resistance and long life.
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplate | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | A | V | Q | T | £ | |||
DTJNR/L1616H16 | O | O | 16 | 16 | 100 | 32 | ■6 | 20 | TN"1604 | TN-D1603 | DXD0512 | DYB2313 | DGD0520 | DTN0814 | L4.0 |
DTJNR/L2020K16 | . | • | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
DTJNR/L2525M16 | • | • | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
DTJNR/L3232P16 | . | . | 32 | 32 | 170 | 35 | 32 | 40 | |||||||

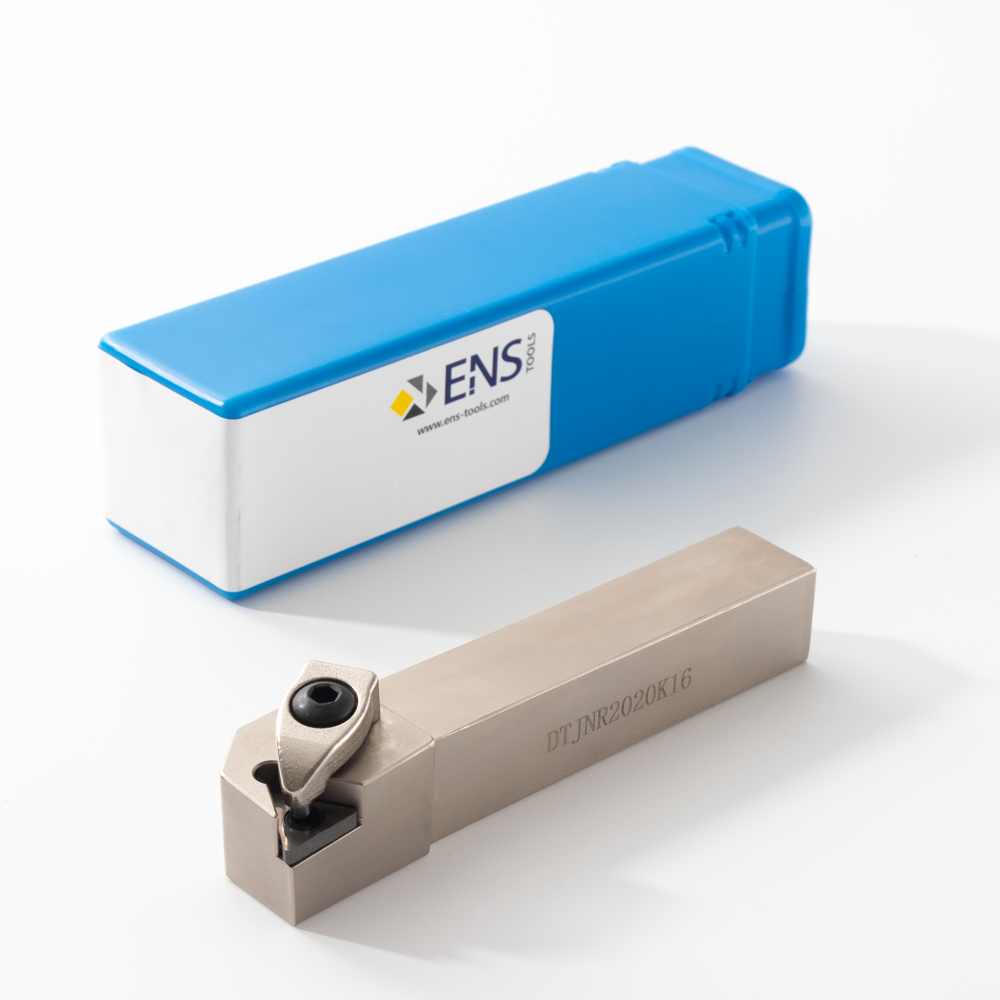

Factory & Packing
Ordering Code | Stock | Dimensions(mm) | Insert | Pad | Pin | Pressingplale | Screw | Spring | Wrench | ||||||
R | L | h | b | L | L1 | hi | f | A | t | Q | f | g | j | ||
WTJNR/L1616H16 | O | O | 16 | 16 | 100 | 32 | -6 | 20 | TW1604 | TN-W1603 | WXD0513 | WYB1816 | DGD0526 | DTN0814 | L2.5 L4.0 |
WTJNR/L2020K16 | . | • | 20 | 20 | 125 | 32 | 20 | 25 | |||||||
WTJNR/L2525M16 | . | . | 25 | 25 | 150 | 32 | 25 | 32 | |||||||
WTJNR/L3232P16 | • | • | 32 | 32 | 170 | 35 | 32 | 40 | |||||||
