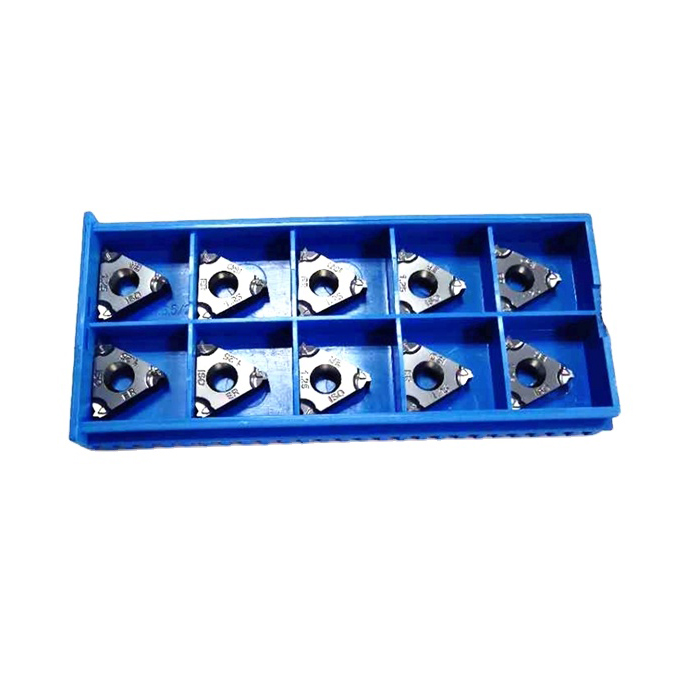

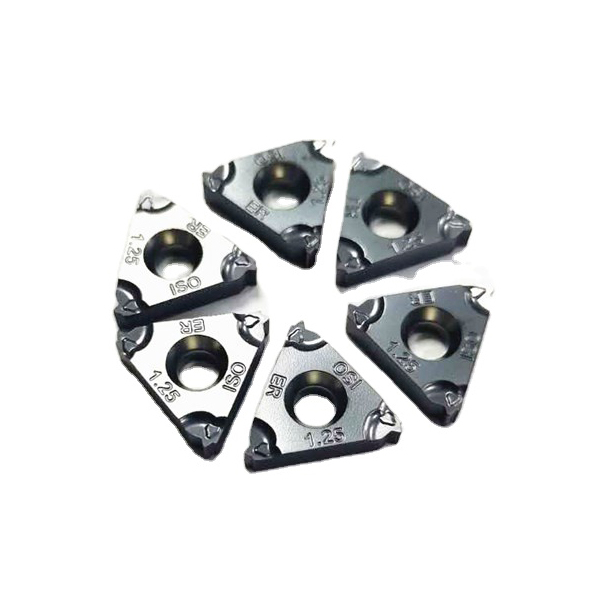

Quality Thread Turning Inserts

Quality Thread Turning Inserts are made of stainless steel, carbide, tungsten steel and other materials. The surface is glossy and smooth. Look at any angle, no impurities such as defects. It is convenient and quick to disassemble and disassemble.

Availability:

Quantity:



Inquire

Model:
16ER series
Brand:
Ens

Product Description

Our goal is to establish longer cooperation relationship with our clients to have a win-win situation.Generally speaking, comparing to some Japanese famous brand, our Nicecutt products have 20% longer tool life, but in half price. You couldd see the case studies in the CASE STUDY tab.

		ml					K		Cast Iron					•
							N		Non-ferrous Metal						s
		ic、					S		Heat-resistant Alloy					0
Shape	Ordering Code			Pitch	Dimension								CVD	PVD I
	ER		IR	mm TPI	D	S		L		X	Y	R	NP1115\|nS4125\|		NN9115I
A			11IR32UN	32	6.36	3.18		11		0.60	0.60	0.10		.	•
			11IR28 UN	28						0.60	0.70	0.10		•	•
			11IR24UN	24						0.70	0.80	0.13		•	•
			11IR20UN	20						0.80	0.90	0.15		•	.
			11IR18UN	18						0.80	1.0	0.18		•
			11IR16UN	16						0.90	1.10	020		•	•
	16ER32UN		16IR32 UN	32	9.525	3.97		16		0.60	0.60	0.08		•	•
	16ER28UN		16IR28UN	28						0.60	0.70	0XJ8		•	•
	16ER24UN		16IR24UN	24						0.70	0.80	0.10		•	.
	16ER20UN		16IR20 UN	20						0.80	0.90	0.10		•	•
	16ER18UN		16IR18UN	18						0.80	1.0	0.13		•	.
	16ER16UN		16IR16UN	16						0.9	1.1	0.15		•	•
	16ER14UN		16IR14UN	14						1.0	12	0.18		•	.
	16ER13UN		16IR13UN	13						1.1	13	020		.	•
	16ER12UN		16IR12UN	12						1.1	1.4	023			•
	16ER11.5UN		16IR11.5UN	11.5						1.1	1.4	025		.	•
	16ER11UN		16IR11UN	11						1.1	15	028		•	•
	16ER10UN		16IR10UN	10						1.1	1.5	0.30		•	•
	16ER9UN		16IR9UN	9						1.2	1.7	0^3		•	•
	16ER8UN		16IR8UN	8						1.2	2.0	036		•	.
	22ER7UN		22IR7UN	7	12.7	5.56		22		1.60	2.30	0J8		•	•
	22ER6UN		22IR6UN	6						1.60	2.30	0.41		•	•
	22ER5UN		22IR5UN	5						1.70	2.50	0.43		•	•
A	16ER32UN-B		16IR32UN-B	32	9.525	3.97		16		0.60	0.60	0.08
	16ER28UN-B		16IR28 UN-B	28						0.60	0.70	0.08		O
	16ER24UN-B		16IR24UN-8	24						0.70	0.80	0.10
	16ER20UH-B		16IR20UN-B	20						0.80	0.90	0.10
	16ER18UN-B		16IR18UN-8	18						0.80	1.0	0.13
	16ER16UN-B		16IR16UN-B	16						0.9	1.1	0.15
	16ER14UN-B		16IR14UN-8	14						1.0	12	0.18
	16ER13UH-B		16IR13UN-8	13						1.1	1.3	020		0
	16ER12UM-B		16IR12UN-B	12						1.1	14	023
	16ER11.5 UN-8		16IR11.5UW-B	11.5						1.1	1.4	025
	16ER11UI*-B		16IR11UN-B	¹¹						1.1	1.5	0.28		0
	16ER10UN-B		16IR10UN-8	10						1 1	1 4	n m		c

Shape	Ordering Code		Pitch		Dimension						CVD	PVD	Uncoated
Shape	ER	IR	mm	TPI	D	s	L	X	Y	R	NP1115 NS4125INN9115
A		11IR27NPTF	27		6.35	3.18	11	0.70	0.80	0.08
		11IR18NPTF	18					0.80	1.00	0.10
		11IR14NPTF	14					0.80	1.00	0.13		O	O

A	16ER27NPTF	16IR27NPTF	27		9.525	3.97	16	0.70	0.80	0.08		O	O
	16ER18NPTF	16IR18NPTF	18					0.80	1.00	0.10			o
	16ER14NPTF	16IR14NPTF	14					0.90	1.20	0.13
	16ER11SNPTF	16IR11.5 NPTF	11.5					1.10	1.50	0.18		O
	16ER8NPTF	16IR8NPTF	8					1.30	1.80	0.23		O	O

★ Matched holder in P151-153

60° NPT

\|P	Steel	©	o
M	Stainless Steel		0
\|k	Cast Iron		,
\|n	Non-ferrous Metal
	Heat-resistant Alloy		©

Shape	Ordering Code		Pitch		Dimension						CVD	PVD	Uncoated
Shape	ER	IR	mm	TPI	D	s	L	X	Y	R	NP1115	NS4125	NN9115
A		11IR27 NPT	27		6.35	3.18	11	0.70	0.80	0.08		.
		11IR18NPT	18					0.80	1.00	0.10		•
		11IA14NPT	14					0.80	1.00	0.15		.	O

	16ER27NPT	16IR27 NPT	27		9.525	3.97	16	0.70	0.80	0.08		•
	16ER18NPT	16IR18NPT	18					0.80	1.00	0.10		•	o
	16ER14NPT	16IR14NPT	14					0.90	1.20	0.15		•	o
	16ER115NPT	16IR11.5NPT	11.5					1.10	1.50	0.20		•	o
	16ER8 NPT	16IR8NPT	8					1.20	1.80	2.54		•
A	16ER27NPT-B	16IR27NPT-B	27		9.525	3.97	16	0.70	0.80	0.80		o
	16ER18NPT-B	16IR18NPT-B	18					0.80	1.00	0.15		o
	16ER14NPT-B	16IR14NPT-B	14					0.90	1.20	0.20		•
	16ER115NPT-B	16IR11.5NPT-B	11.5					1.10	1.50	0.25		•

Shape	Ordering Code		Pitch	Dimension						CVD	PVD	Uncoated
Shape	ER	IR	mm TPI	IC	s	L	X	Y	R
A		11IR0.50 ISO	0.50	6.35	3.18	11	0.60	0.60	0.05		•	•
		11IR0.75 ISO	0.75				0.60	0.60	0.08		•	•
		11IR1.00 ISO	1.00				0.70	0.70	0.10		•	•
		11IR1.25 ISO	1.25				0.80	0.90	0.13		•	•
		11IR1.50 ISO	1.50				0.80	1.0	0.18		.	•
		11IR1.75 ISO	1.75				0.80	1.10	0.22		•	•
		11IR2.00 ISO	2.00				—	—	0.25		•	•
A		11IR0.50 ISO-B	0.50	6.35	3.18	11	0.60	0.60	0.05		•
		11IR0.75 ISO-B	0.75				0.60	0.60	0.08		.
		11IR1.00 ISO-B	1.00				0.70	0.70	0.10		•
		11IR1.25 ISO-B	1.25				0.80	0.90	0.13		•
		11IR1.50 ISO-B	1.50				0.80	1.0	0.18		•
		11IR1.75 ISO-B	1.75				0.80	1.10	0.22		•
		11IR2.00 ISO-B	2.00				—	—	0.25		•
	16ER0.50 ISO	16IR0.50 ISO	0.50	9.525	3.97	16	0.60	0.60	0.05		•	•
	16ER0.75 ISO	16IR0.75 ISO	0.75				0.60	0.60	0.08		•	•
	16ER1.00ISO	16IR1.00 ISO	1.00				0.70	0.70	0.10		•	•
	16ER1.25 ISO	16IR1.25 ISO	1.25				0.80	0.90	0.13		•	•
	16ER1.50 ISO	16IR1.50 ISO	1.50				0.80	1.0	0.18		•	•
	16ER1.75 ISO	16IR1.75 ISO	1.75				0.90	1.20	0.22		.	•
	16ER2.00ISO	16IR2.00 ISO	2.00				1.0	1.30	0.25		.	.
	16ER2.50 ISO	16IR2.50 ISO	2.50				1.10	1.50	0.30		.	.
	16ER3.00ISO	16IR3.00 ISO	3.00				1.20	1.60	0.36		•	•
	22ER3.50 ISO	22IR/L3.50ISO	3.50	12.7	5.56	22	1.60	2.30	0.38		•	•
	22ER4.00 ISO	22IR-L4.00ISO	4.00				1.60	2.30	0.40		.	.
	22ER4.50 ISO	22IR0.4.50ISO	4.50				1.70	2.40	0.40		•	•
	22ER5.00 ISO	22IR0.5.00ISO	5.00				1.70	2.40	0.40		•	.
A	16ER0.50 ISO-B	16IR0.50 ISO-B	0.50	9.525	3.97	16	0.60	0.60	0.05		o
	16ER0.75 ISO-B	16IR0.75 ISO-B	0.75				0.60	0.60	0.08		o
	16ER1.00 ISO-B	16IR1.00 ISO-B	1.00				0.70	0.70	0.10		•
	16ER1.25 ISO-B	16IR1.25 ISO-B	1.25				0.80	0.90	0.13		•
	16ER1.50 ISO-B	16IR1.50 ISO-B	1.50				0.80	1.0	0.18		.
	16ER1.75 ISO-B	16IR1.75 ISO-B	1.75				0.90	1.20	0.22		•
	16ER2.00 ISO-B	16IR2.00 ISO-B	2.00				1.0	1.30	0.25		•
	16ER2.50 ISO-B	16IR2.50 ISO-B	2.50				1.10	1.50	0.30		•
	16ER3.00 ISO-B	16IR3.00 ISO-B	3.00				1.20	1.60	0.36		.

★ Matched holder in P151-153

Quality Thread Turning Inserts

Thread turning Inserts Tungsten Carbide turning inserts 11IR32UN 11IR28 UN 16ER32UN 16ER28UN 16ER24UN 16ER32UN-B 11IR27NPTF 11IR0.50 ISO
