Home » Products » Boring Tools & Drilling Tools » Fast Drilling Indexable U Drilling 2D 3D 4D For WCMX050308 Drilling Insert Mechanical Bit Drill Milling Inserts

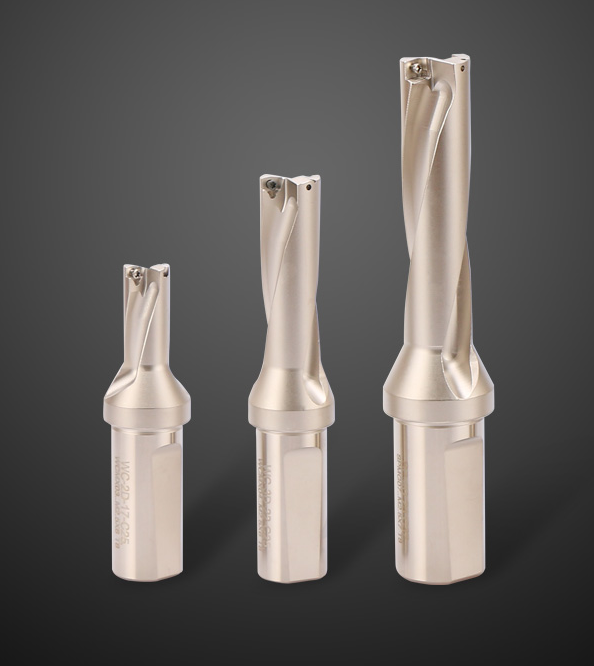

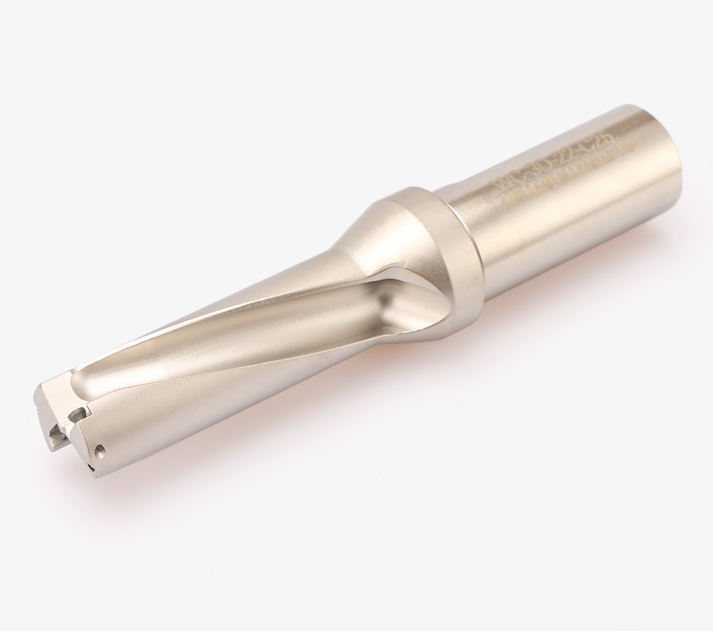

Fast Drilling Indexable U Drilling 2D 3D 4D For WCMX050308 Drilling Insert Mechanical Bit Drill Milling Inserts

Share to:

Fast Drilling Indexable U Drilling 2D 3D 4D For WCMX050308 Drilling Insert Mechanical Bit Drill Milling Inserts

Much higher feed rate,the rotating speed is much higher than normal drills

Availability:

Quantity:



Inquire

Model:
C20-2D13-29SP05
Brand:
Ens

Product Description

Dear Customer

This is WCMX2D 3D 4D Fast Drilling(U Drill)1 pcs,if you are looking for other models, please contact us.

Product Description

Specification

Ordering Code	Stock	D (mm)	L1 (mm)	L (mm)	DS (mm)	LS (mm)	Insert	Screw	Wrench
C25-3D15-48WC03	.	15	48	119
C25-3D15.S-50WC03	.	15.5	50	121
C25-3D16-51WC03	.	16	51	122
C25-3D16.5-53WC03	.	16.5	53	124
C25-3D17-54WC03	.	17	54	125
C25-3D17.S-56WC03	.	17.5	56	127			WCMX030208	M2.5	TQ
C25-3D18-57WC03	•	18	57	128			WCMX030208	M2.5
C25-3D18.S-59WC03	.	18.5	59	130
C25-3D19-60WC03	.	19	60	131
C25-3D19.S-62WC03	.	19.5	62	133
C25-3D20-63WC03	.	20	63	134	25	56
C25-3D20.5-65WC03	.	20.5	65	136
C25-3D21-66WC04	•	21	66	137
C25-3D21.5-68WC04	.	21.5	68	139
C25-3D22-69WC04	.	22	69	140
C25-3D22.5-71WC04	.	22.5	71	142			WCMX040208	M2.5	TQ
C25-3D23-72WC04	.	23	72	146			WCMX040208	M2.5
C25-3D23.S-74WC04	.	23.5	74	148
C25-3D24-75WC04	.	24	75	149
C25-3D24.S-77WC04	.	24.5	77	151
	.		7R	15?
C32-3D25.S-80WC05	.	25.5	80	160
C32-3D26-81WC05	.	26	81	161
C32-3D26.5-83WC05	.	26.5	83	163					TA
C32-3D27-84WC05	.	27	84	164			WvM AUOUoUO	MO	• o
C32-3D28-87WC05	.	28	87	167
C32-3D29-91WC05	.	29	91	172
C32-3D30-94WC05	.	30	94	178
C32-3D31-97WC06	•	31	97	181	32	60
C32-3D32-100WC06	.	32	100	184
C32-3D33-103WC06	•	33	103	187
C32-3D34-106WC06	.	34	106	190
C32-3D35-109WC06	.	35	109	193
C32-3D36-112WC06	.	36	112	196
C32-3D37-116WC06	•	37	116	206
C32-3D38-119WC06	.	38	119	209
C40-3D3^-122WC06	.	39	122	222			WCMX06T308	M3.5	T15
C40-3D40-125WC06	.	40	125	225
C40-3D41-128WC06	•	41	128	228
C40-3D42-131WC06	.	42	131	231
C40-3D43-134WC06	.	43	134	234
C40-3D44-137WC06	.	44	137	237
C40-3D45-140WC06	.	45	140	240
C40-3D46-143WC06	.	46	143	243
C40-3D47-146WC06	•	47	146	246
C40-3D4&-149WC08	.	48	149	249
C40-3D4g-152WC06	.	49	152	252
C40-3D50-155WC08	.	50	155	255	40	70
C40-3D51-158WC08	•	51	158	258
C40YD52-161WC08	.	52	161	261
C40-3D53-164WC08	.	53	164	264
C40-3D54-167WC08	.	54	167	267			WCMX080412	M4	T15
C40-3D55-170WC08	.	55	170	270
C40-3D56-176WC08	.	56	176	278
C40-3D57-179WC08	•	57	179	281
040-3058-1R2WC0R	♦	58	182	284

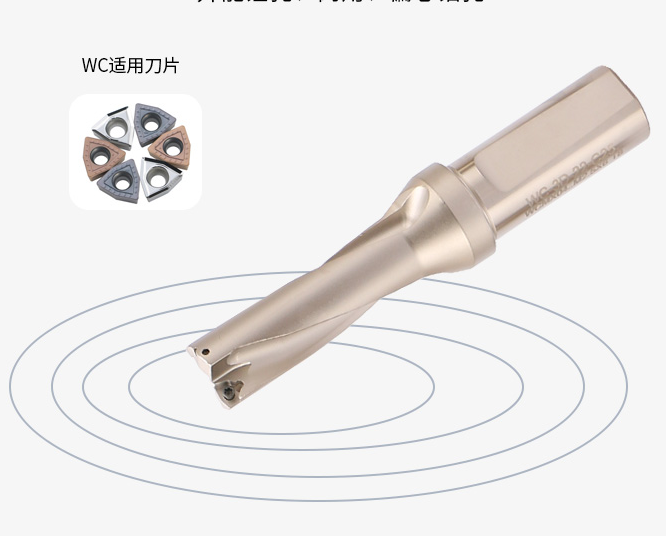

Matched insert:

WCMX030208-NM-NS4125

WCMX040208-NM-NS4125

WCMX050308-NM-NS4125

WCMX06T308-NM-NS4125

WCMX080412-NM-NS4125

Material	Hard Alloy Steel
Working process	CNC Tools
Features	Good surface,Longer tool life,High quality
Advantage	Customized products available

Company Profile

NiceCutt Cutting Tools (Changzhou) Ltd , former named as Changzhou NICE Tools LTD, which was founded in 1998, our main products are tungsten carbide cutting tools, offering a wide range of external and internal tools with carbide inserts, external and internal holders,grooving and threading tool,milling tools , end mills,drills,etc.With competitive price and high quality products, we help you minimize your manufacturing costs and getting satisfied processing experience.
We are looking for an agent in your region or OEM for you!

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1.What can we buy from you?

Carbide inserts,external and internal holders,grooving and threading tool,milling tools,end mills,drills,etc

2.Do you provide free samples for testing?

We would like provide you samples free in cost,you just need to afford the shipping cost.

3. How can you guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

4. Why should we buy from you not other suppliers?

NiceCutt cutting tools have 30% longer tool life in general, but much more competitive price, comparing to some Japanese famous brand.

5. what services can you provide?

We guarantee after sales support with effective service coordination from our experienced engineers.You can depend on high quality service.We’ll treat every email within 24 hours(usually much faster).
